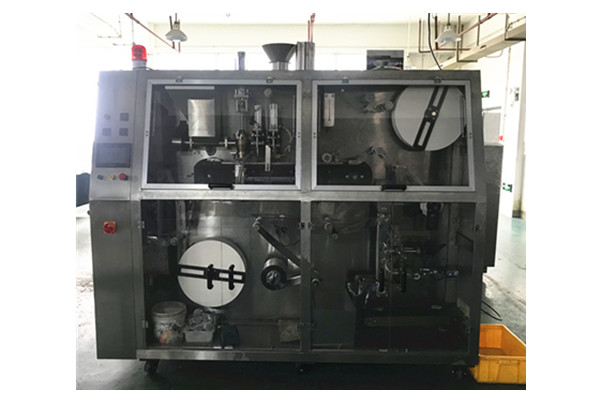

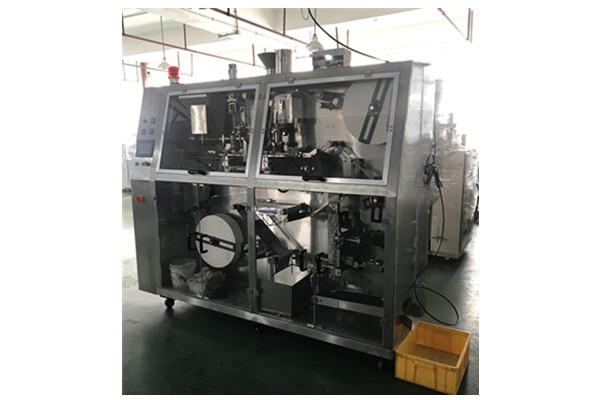

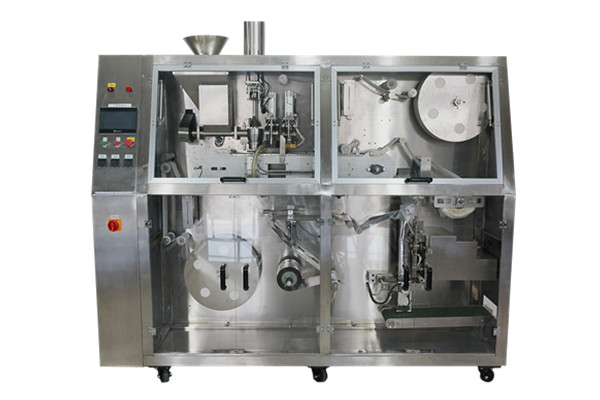

Product Name:Continuous coffee cake inner and outer bag packing machine

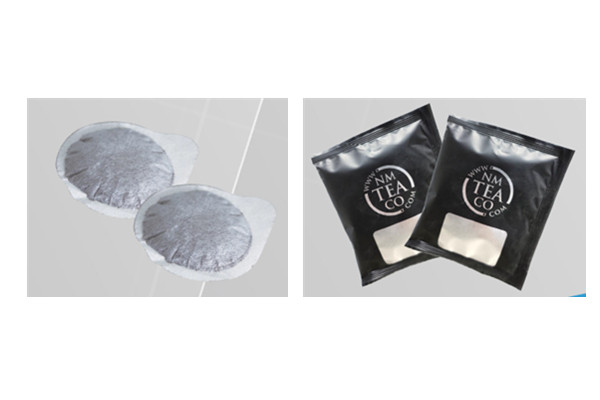

(The inner bag uses cotton paper or filter paper,and the outer bag is coated with aluminum or plastic film.)
Usage:
It is suitable for the packaging of powder materials such as tea powder, coffee powder and medicine powder.
Function:
It can automatic bag making, weighing, filling, pressing, sealing and slitting.
Advantages:
1.It adopts PLC to control the whole machine action, touch screen operation interface, man-machine interface design, easy operation, easy adjustment and maintenance.
2.All accessible materials are made of SUS304 stainless steel to ensure the product is hygienic and reliable.
Technical Specification:
|
Packing capacity |
4-10g (10-33ml) |
|
Sealing method |
inner bag filter paper round or round with ear sealing outer bag three-side sealing |
|
Packing speed |
10-15 bags/min (depending on our materials) |
|
Bag size |
inner bag:Ø 55 mm |
|
outer bag:100mm(L)x 85mm(W) |
|
|
Power supply |
220V/50Hz/3.5KW |
|
Air source |
≥0.6m3/min |
|
Machine weight |
1000KG |
|
Dimensions |
1500mm(L)x1210mm(W)x2120 mm(H) |
Electrical configuration:
|
Item |
Electrical accessories |
Brand |
|
1 |
Touch screen |
Weilun |
|
2 |
PLC |
Omron |
|
3 |
Temperature table |
Huibang |
|
4 |
Stepper motor |
Leisai |
|
5 |
Switch |
Zhengtai |
|
6 |
Proximity switch |
Kerui |
|
7 |
Solid state relay |
Meigel |
|
8 |
Color sensor |
Wenzhou |
|
9 |
Servo motor |
Leisai |
