Noodle equipment - strapping three-Dimensional bag production line

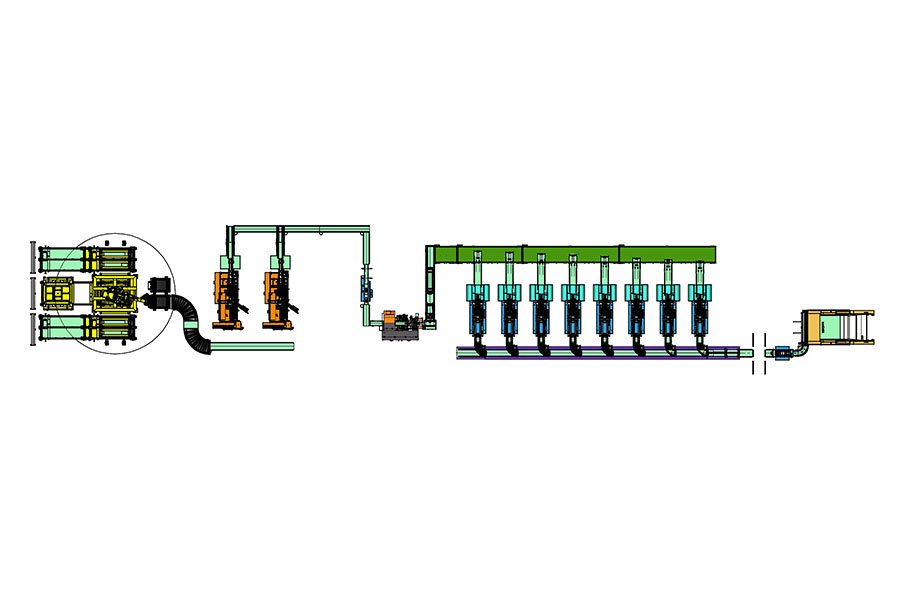

1.the production line equipment composition:

High-precision cutting machine - curved type intelligent feeding system - weighing machine - strapping machine - strapping conveyor - intelligent material handling device - automatic propulsion machine - three-dimensional bag packaging machine - double rejection automatic inspection Heavy scale - plastic bag flat pocket bagging machine - robot palletizer.

2. the production line process:

The whole rod hanging surface from the drying room enters the high-precision cutting machine and is intelligently cut according to the preset length. The cut surface is cut into the weighing machine stations through the curved intelligent feeding system. After accurate weighing by each weighing machine, it will enter the bundling machine station for bundling, and the bundled materials will be sent to the intelligent material handling device by the bundling conveyor. After the material is controlled and stretched by the intelligent material handling device, the picking mechanism is used. The automatic propulsion machine is picked up according to the predetermined number of packages, and is automatically pushed into the three-dimensional bag packaging mechanism bag by the automatic propulsion machine, and is packaged by the three-dimensional bag packaging machine. After the packaging, the single-bag finished product is subjected to weight inspection by double-checking the automatic checkweigher, and the qualified products are put into the plastic bag flat pocket bagging machine for large bag packaging. The packaged large bag finished product is sent to the palletizing area via the finished conveyor, and is palletized by the palletizing robot, and then sent to the finished product warehouse to complete the entire production process.
