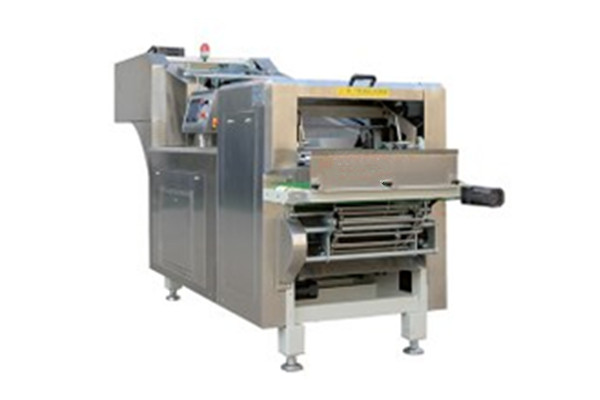

Prroduct Name:Automatic stick noodle /rice noodle cutting machine

Features:

1. Cut with a herringbone knife, cut the rear end section neatly, and the crushing rate is low;

2, special cutter and hanging rod mechanical design, no cutting rod;

3. Increase the separation function of the tailings to prevent the end tail material from entering the conveying and packaging process after slitting;

4. It has a clearing rod mechanism to automatically remove the remaining surface of the rod, and at the same time realize the automatic returning of the hanging rod to reduce the manual transportation and prevent secondary pollution caused by human contact;

5, can achieve 500mm to 1500mm noodles, pasta, rice noodle production line cutting requirements.

Application range:

The equipment is mainly used for slitting of long-shaped foods such as dry noodles, pasta, rice noodles, etc. According to the requirements, precise cutting of different lengths is realized, and functions such as automatic lowering, cutting, and automatic clearing are completed.

The main technical parameters:

1. Rated voltage (V): single-phase AC 220

2, frequency (Hz): 50 ~ 60

2. Rated power (kW): 3/4.5 (1500 type)

3. Air consumption (L/min): 3

4, cutting speed (rod / min): 14 ~ 18

5, cut length (mm): 180 ~ 260

6, the largest equipment size L * W * H (mm): 3700 × 2200 × 1850
