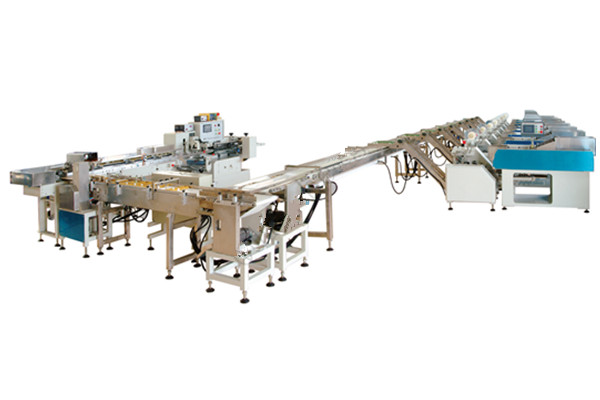

Full-automatic Packing Machine with 8 Lines of Weighing & Bundling Machine

Long Pasta Weighing Packaging Machine

Full-automatic Packing Machine with 8 Lines of Weighing & Bundling Machine - copy - copy

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Full-automatic Packing Machine with 8 Lines of Weighing & Bundling Machine
·Item No.: BJWD-CLKZQZD-100

Packed bag:

·Contains:

1, packing machine :one set

2,conveyor line: one set

3,mixing device: one set

4,heaping device: one set

5, accelerating device: one set

6, blank conveyor line: three sets

7, hoist engine: eight sets

8, bundling line: eight sets

9, weighing machine: eight sets

Application :

Automatically finish the process of weighting, outputting, bundling and sealed packing of the Spaghetti and other noodle

Technical Specification:

Object：	noodle, Spaghetti
length of the noodle	200-260mm
thickness of the noodle	0.6～1.4mm
width of the noodle	0.8～3.0mm
packing rate	25-35bags/min
weight range	400～600g/bag:150g/bundle-4bundles /bag MAX
weight range	125g/bundle-5bundles /bag MAX
Inputting method	number input
variable setting：	0.1g
exact value	±2.0g
Dimensions	18000mm×5300mm×1650mm
voltage	AC220v/50-60HZ/14.5KW

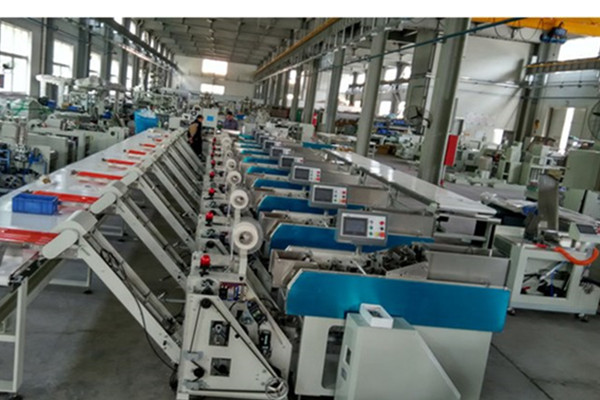

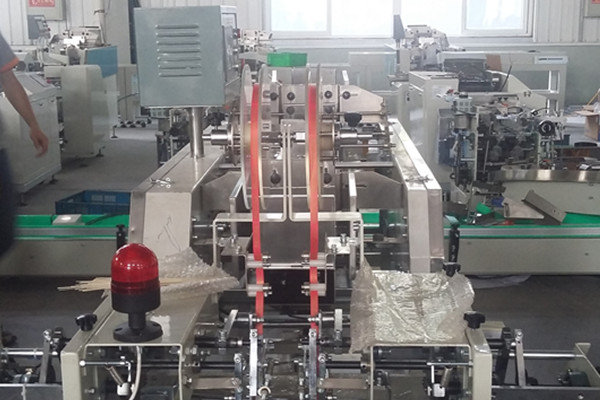

Machine Details:

Products's Advantage:
I. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.
II. Adpoted latest technology and massify design. Long operating life
III. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
IV. Spare the manpower, Improve productivity: Daily outputting 30t/5 person
V. Saving material resource.
VI. Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.
