Frozen food packaging machine with tray

Long Pasta Weighing Packaging Machine

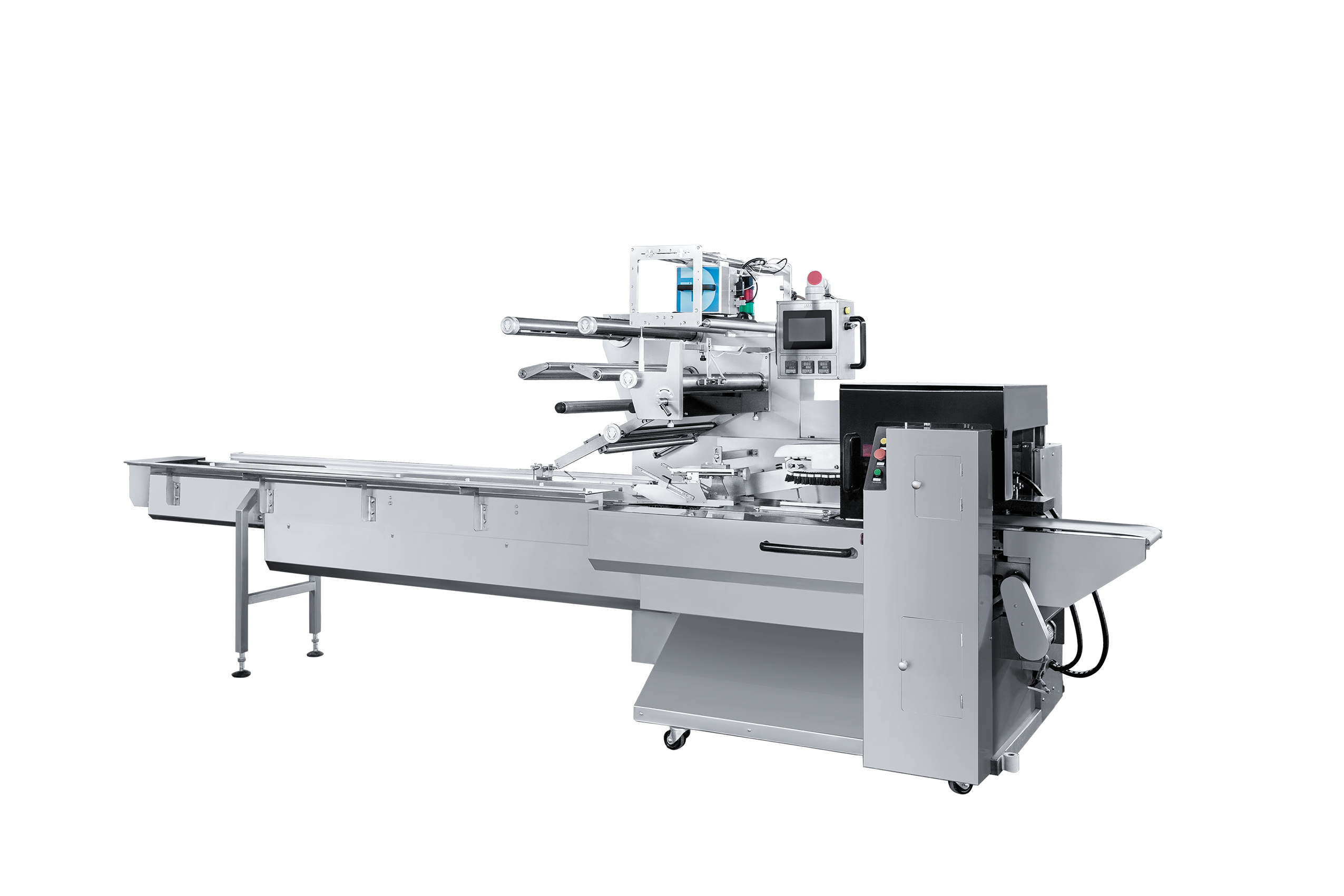

Frozen food packaging machine with tray

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Frozen food packaging machine with tray

Packed bag:

·Contains:

1.weighing machine 1 set

2.Lifting machine 1 set

3.Packaging machine 1 set

4.Product conveying line 1 set

Application :

It is applicable to the packaging of high-end quick-frozen dumplings, pastries and glutinous dumplings, and can also meet the packaging requirements of higher and wider products.

Technical Specification:

Serial Number	Model	MYD-820
1	Packaging film size（mm）	Max 820
2	Packaging speed（packs／min）	20-80
3	bag length（mm）	180-600
4	Product width（mm）	40-320
5	Product height（mm）	5-150
6	Power（kw）	4.5
7	Machine dimensions L＊W＊H（mm）	4700x1500x1900
8	Weight (kg)	1500
9	Power supply	0.6Mpa,1.5M3/Min
10	Voltage	220V 50Hz

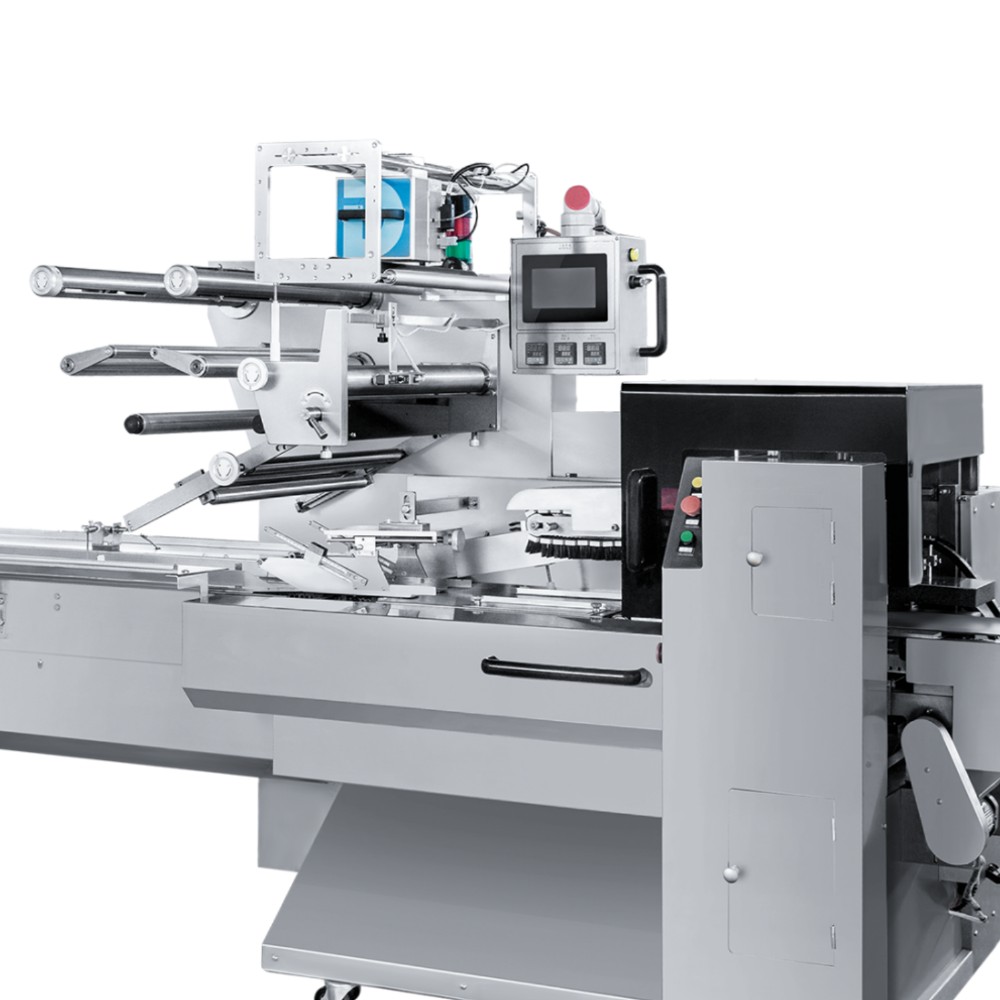

Machine Details:

Products's Advantage:
1. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.
2. Adpoted latest technology and massify design. Long operating life
3. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
4. Saving material resource.
5. Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.

6.Three servo drives with functions such as empty bag detection and automatic feeding.

7.Touch screen 360 ° rotation.Human machine interface, PLC control.Photoelectric detection and automatic tracking.

8.Automatic centering of paper hanging roller.

9.Reciprocating horizontal sealing structure.Vertical seal automatic opening and closing,pneumatic bending angle.

10.Ten sets of product memory,adjustable bag maker.

11.Multiple safety protection measures.Alarm stop and anti cutting function.
