Automatic multi-weighing noodles pasta packaging machine

Long Pasta Weighing Packaging Machine

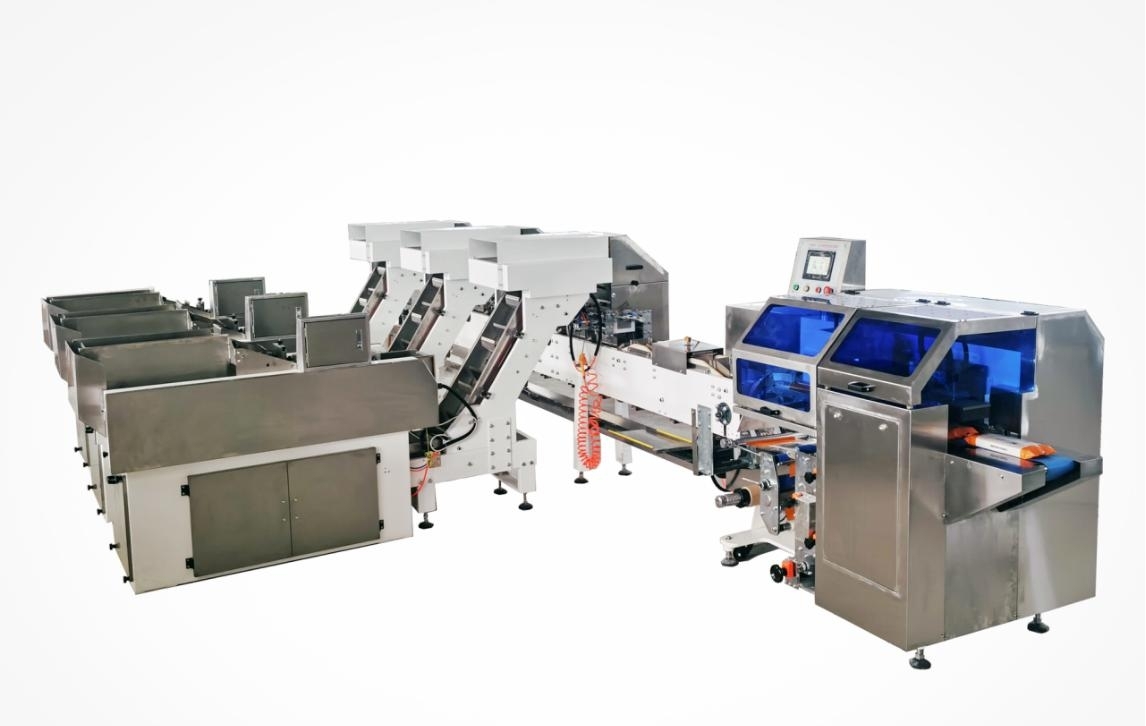

Automatic multi-weighing noodles pasta packaging machine

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Automatic multi-weighing noodles pasta packaging machine

Packed bag:

·Contains:

1.weighing machine 3 sets

2.Lifting machine 3 sets

3.Packaging machine 1 set

4.Product conveying line 1 set

Application :

After weighing and conveying, the bulk noodles spaghetti Pasta and other strips are automatically packaged into ordinary flat bags, with smooth sealing, overall beauty and high yield.

Technical Specification:

Package object	The strip-shaped material (such as noodles.spaghetti)
Packing capacity	30-60 bags / min
Packaging specifications	200g~500g;500g~1000g
Measurement Accuracy	(according to the material strip quality and packing quality differances)
Packaging	OPP/PEQPP/AL/PE suitable for heat sealing packaging material
Power supply	Single-phase AC 220 V/50 Hz

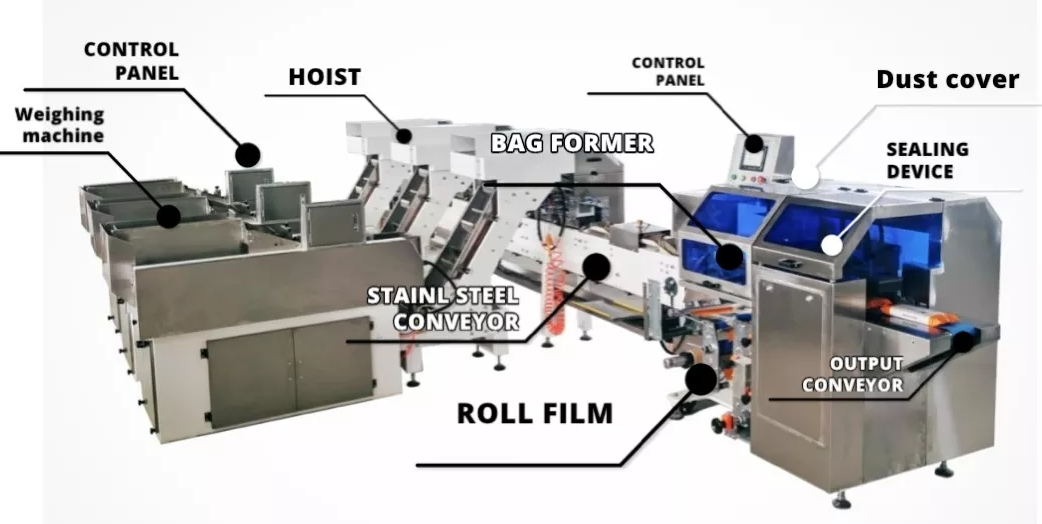

Machine Details:

Products's Advantage:

1. Intelligent, digital servo motor control system.

2. Double drive longitudinal seal, automatic opening and closing type structure.

3. The cross-sealing and cutting center can be adjusted with the height of the package.

4. Feeding position can be adjusted at any time during operation.

5. LCD can set and display operation status, parameters, and faults.

6. Conveying part has a compact structure and adopts a box-type structure, which solves the disadvantages of the conventional scraper structure that needs to be changed and exposed frequently.

7. With a unique noodle tidy device to ensure the qualified rate of the finished product of noodle packaging

8. With an empty package detection function, saving packaging costs

9. Color-mark tracking points are automatically positioned and followed automatically; bags are automatically measured and memorized.

10.Domestic initiative, patented product
