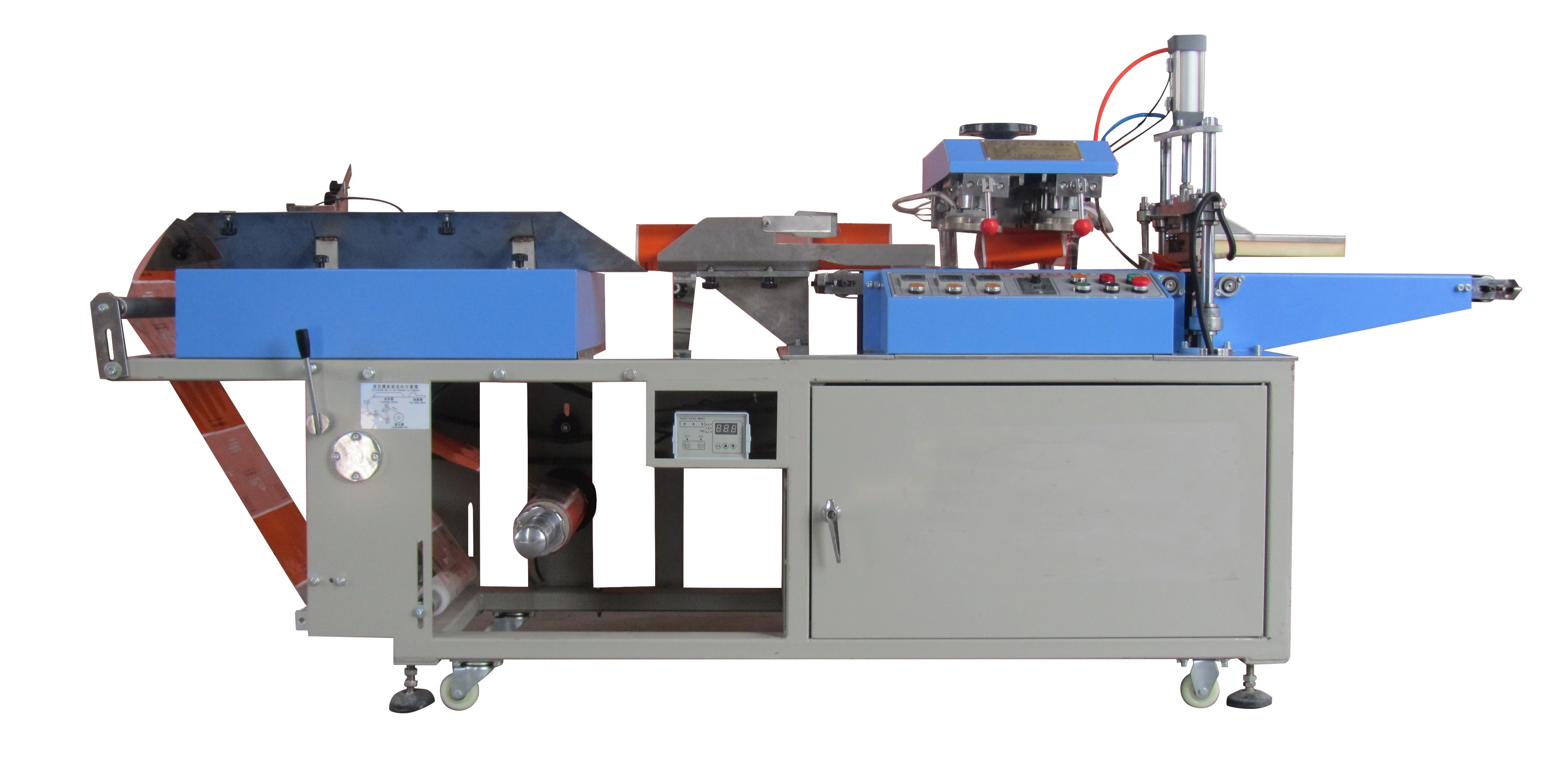

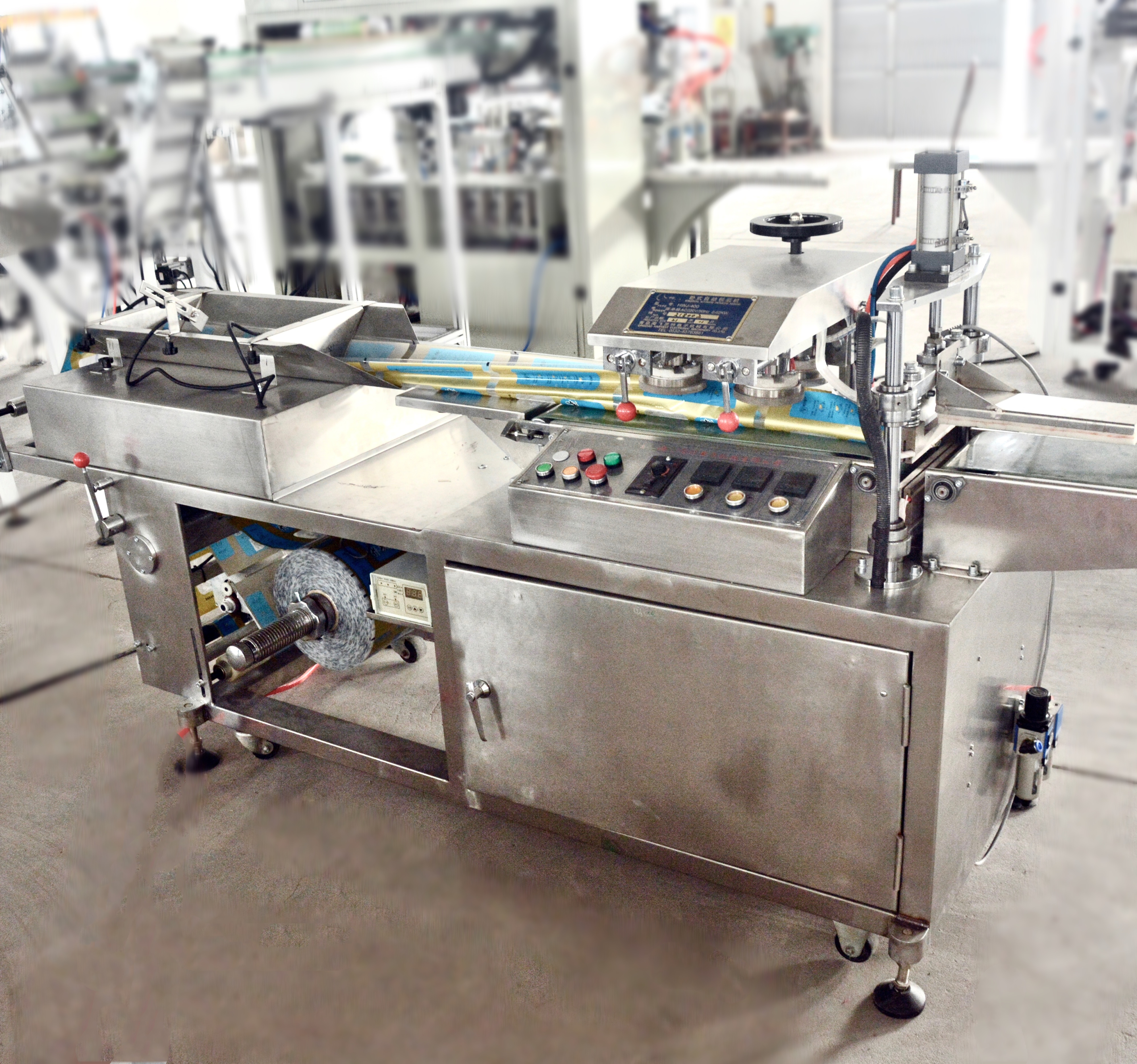

Rice Noodles Vermicelli Fresh Noodles Irregular Strip Food Straight In Horizontal Packaging Machine

Long Pasta Weighing Packaging Machine

Rice Noodles Vermicelli Fresh Noodles Irregular Strip Food Straight In Horizontal Packaging Machine

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Rice Noodles Vermicelli Fresh Noodles Irregular Strip Food Straight In Horizontal Packaging Machine

Packed bag:

Contains:

weighing machine, conveyor line, packaging machine.

Application :

Horizontal packaging machine is a versatile multifunctional packaging machine, which is suitable for packaging rice noodles, vermicelli, ramen, wet noodles, raw noodles, and long bulk items, especially for packing irregular and long items. Its appearance has changed the history of fresh noodles' manual packaging, reducing the burden of labor by the enterprise, by the majority of users unanimously praised.

Technical Specification:

Model specification	400/240
Maximum width of packaging Materials	400mm
Packing size	Lentgh 150-900 (Individual package material upto a maximum of 1000) /Width 50-170/Height 5-80 (mm)
Production performance	≤25 bags / min( according to the film material and the matching equipment)
Dimensions	2700 x 900 x 300 (mm)
Packaging materials	OPP/PE、OPP/PP. PTPE、AL/PE、PET/PE etc.
Total weight	500 kg
Motor power	120W
Electric power	450W 2(Parts) 400W 4 (Parts)
Power source	(Single-phase) AC 220 V/50 Hz
Total power	2.62 KW

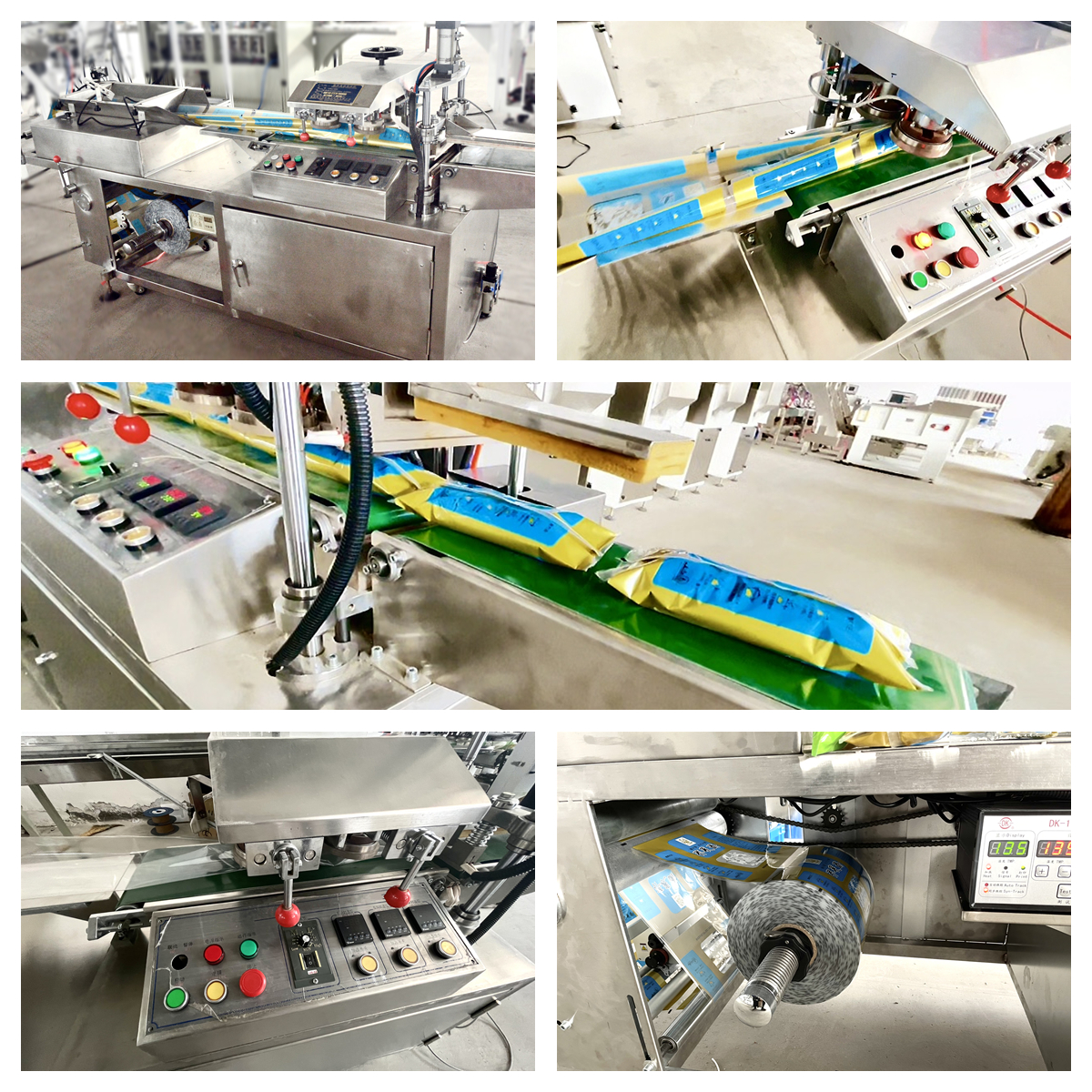

Machine Details:

Products's Advantage:

1. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.

2. Adpoted latest technology and massify design. Long operating life.

3. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine.

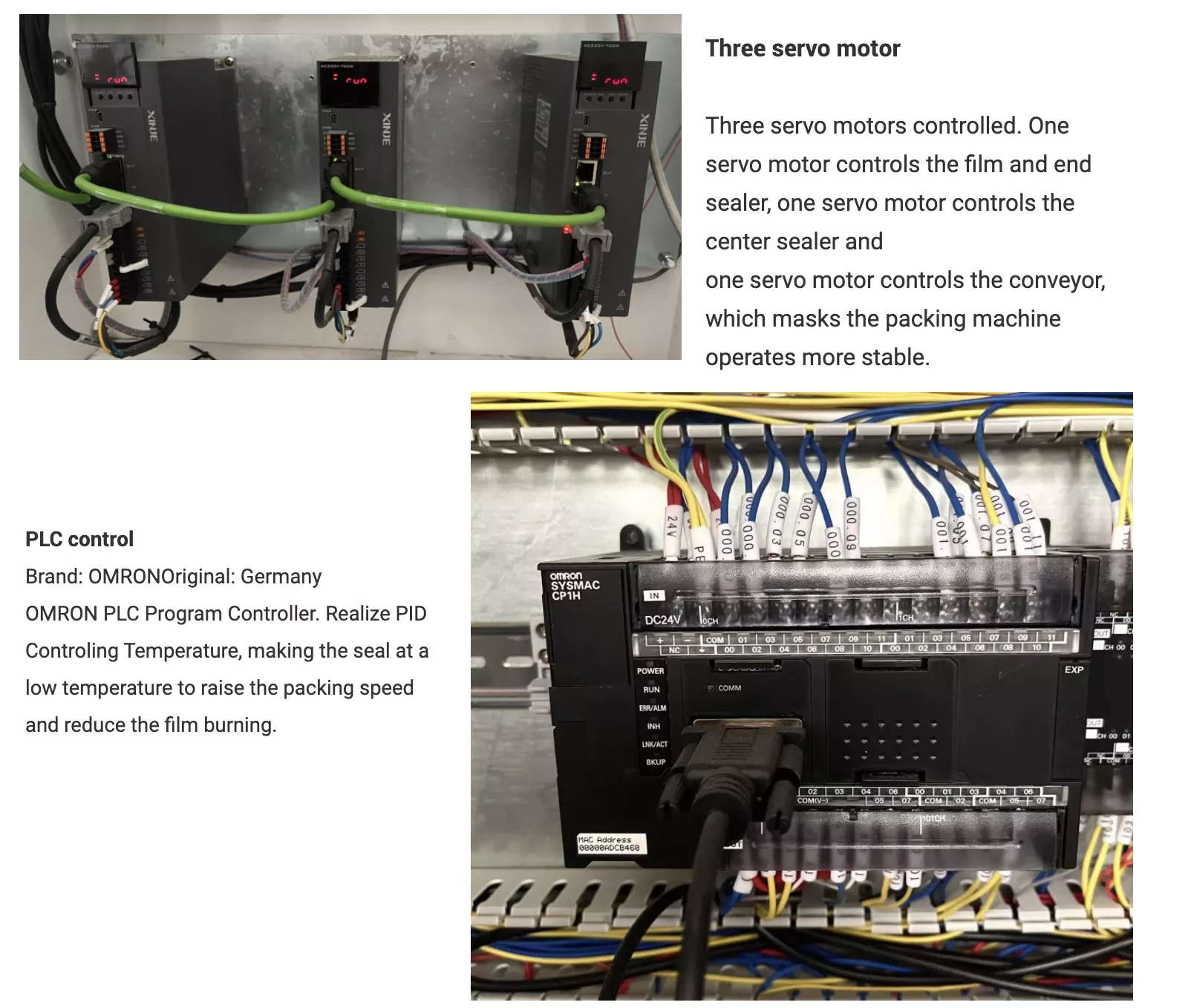

4. The three-servo control system is adopted, with intelligent equipment and stable operation.

5.The touch host control interface is convenient for data setting and intuitive display.

6.It adopts high-quality stainless steel body and dust protection cover, which is durable and not vulnerable.

7.Strong stability and high yield under high-speed operation.

8.Packing length can be adjusted arbitrarily.Simple structure, easy to operate.

9.Applicable to all kinds of long, irregular materials packaging.

Our Factory：

Our Products：

Our Customers：

Shipping photos:
