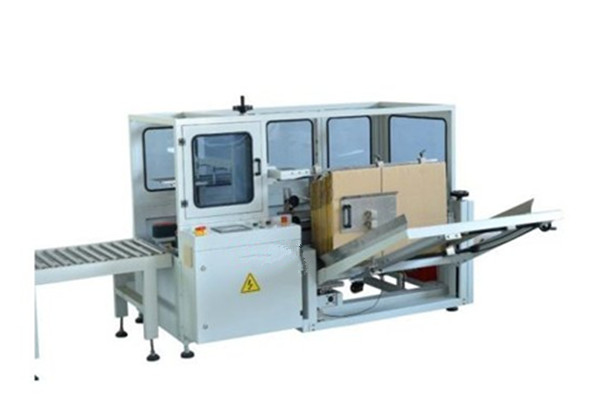

Product Name:Full-Automatic Carton Opening Machine

Application range:

Automatically unpacking and forming, bending the bottom bottom flap, and completing the bonding of the lower tape, automatically opening the cardboard board stacked with the cardboard, the bottom of the box is folded according to a certain procedure, and sealed with tape to be delivered to the packing machine. Equipment, automatic unpacking machine is the automatic unpacking of large quantities of cartons. The automatic water-opening machine seals the source water line equipment of the lower bottom tape. This machine adopts PLC plus display control, convenient operation, reduce labor, reduce labor intensity, improve efficiency and reduce cost; it can be sealed with hot melt glue machine.

1, power / power: 220V/50Hz 200W

2. Trial carton: L:200-450 W:150-400 H:100-350(mm)

3, out of the box speed: 8-12 cartons /mim

4, tape width: 48/60/72 (mm)

5, the use of gas source: 0.6-0.7Mpa

6, machine size: L2000 W1900 H1450 (mm)
