MYD-388 Vertical form –fill-seal machiney

Multi-head Vertical Packaging Machine

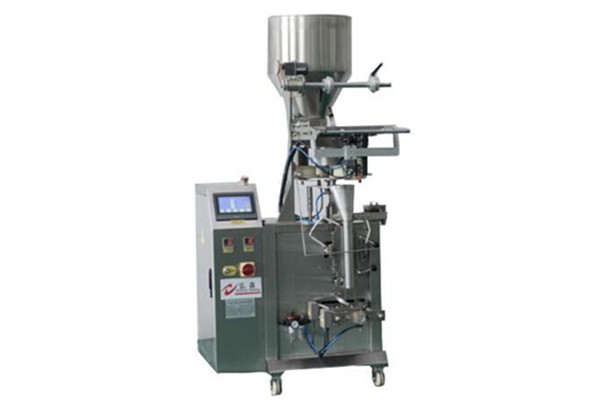

MYD-388 Vertical form –fill-seal machiney

Type:Forming filling Weighing sealing machine
Payment term:T/T,L/C
Warrenty:One year
Product description: Small vertical packaging machine for puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.
INQUIRY

·Product category: Vertical packing machine

·Product name :MYD-388 Vertical form –fill-seal machiney

Usage:

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.

Technical specification:

Type	MYD-388(common type)
Width of film	80-320mm
Width of bag	40-150mm
Thickness of film	0.04-0.07mm
Diameter of film roll	Max.320mm
Packing speed	15-80 bag/min
Filling range	50-500ml
Power specification	220V/50Hz 2.2KW
Overall Size	(L)960×(W)840×(H)1780mm
Weight of machine	250kg

Features:

1.A microcomputer controlled by a sensor signal processing microcomputer and settings to complete the synchronization all , bags long, positioning, automatic tracking of the cursor, automatic fault diagnosis and display on screen.
2.Set bag, and materials measurement, filling, inflatable, count, Seal, a code, feeding, limited downtime, set-cut package, such as a series of actions are done automatically.

3.Apply to grain, spices, pharmaceutical (such as: sugar , Expanded, potato chips, nuts, Guoba, pancake, and other materials) packaging.

4.Polyester / polyethylene, nylon composite film, enhanced composite films, BOPP, etc. Refeng packaging materials.

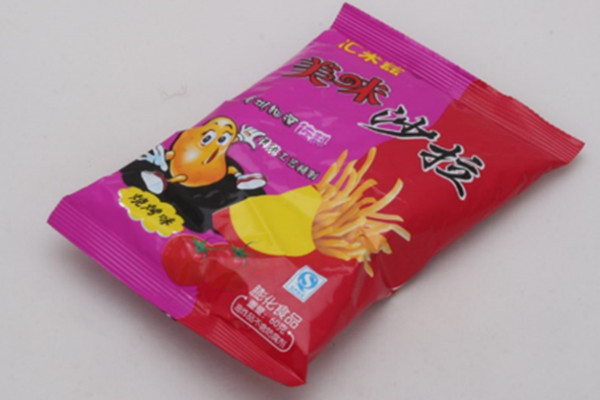

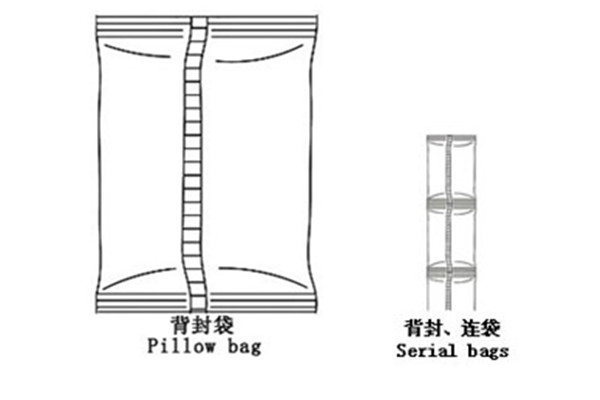

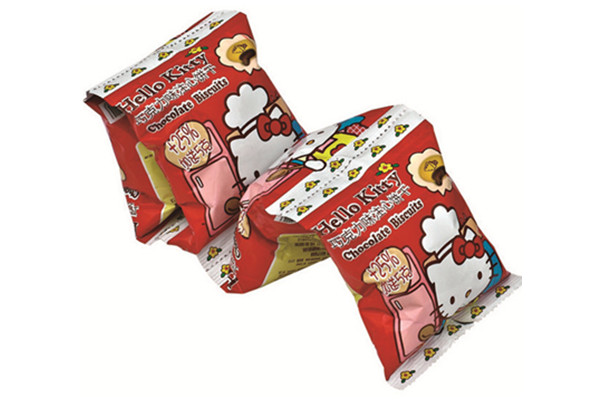

Packed bag:
