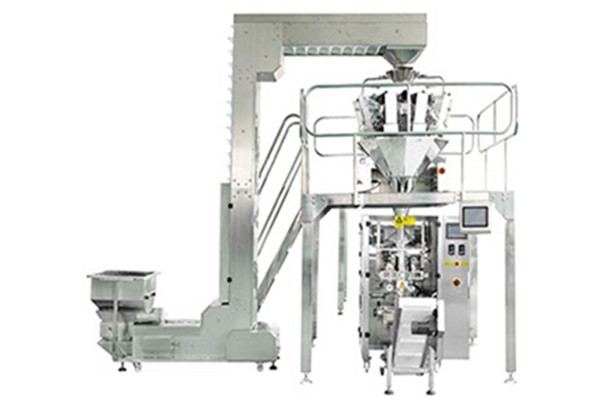

MYD-420A 10/14 multi-heads weighing and packing machine - copy

  • Type:Forming filling Weighing sealing machine
  • Payment term:T/T,L/C
  • Warrenty:One year
  • Product description: Small vertical packaging machine for puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.
  • INQUIRY

·Product category: Vertical packing machine

·Product name :MYD-420A 10/14 multi-heads weighing and  packing machine

Usage:

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.


Technical specification:



Items

Content

Packing speed

5-80 bag/min

Bag size

(Width)60-200mm  (Length)50-300mm

Bag making mode

Pillow-type bag, standing bag, punch hold and connect

Range of measuring

150-1300ml

The maximum width of packing film

420mm

Thickness of film

0.04-0.08mm

Air consumption

200L/min 0.7×105Pa

Main power/voltage

2.2KW/220V 50-60Hz

Dimension

1400×970×1600mm

The weight of switchboard

400kg


10 Heads Weigher

Model

BS-A1-10L1.6

Measuring range

3-3000g

Accuracy

±0.1-1.5g

Max speed

80bags/min

Hopper volume

1.6L

display

7 inches touch screen

Options

Pattern/aggregate hopper

parameter

99 kinds

Power requirements

AC110V/220V 50Hz/60Hz

Packing dimension

108*108*110cm+90*70*83cm

Net weight

420kg



Features:

PLC computer control system.PLC from Janpan or Germany.

◆Big touch From Tai wan . Easy to operate and control the machine.

◆High precise positioning with servo film transporting system .

◆With warn protection function.

◆The machine combines with a 10 heads weigher, it will automatically complete all packaging processes from measuring, feeding, filling, printing , finished bag.

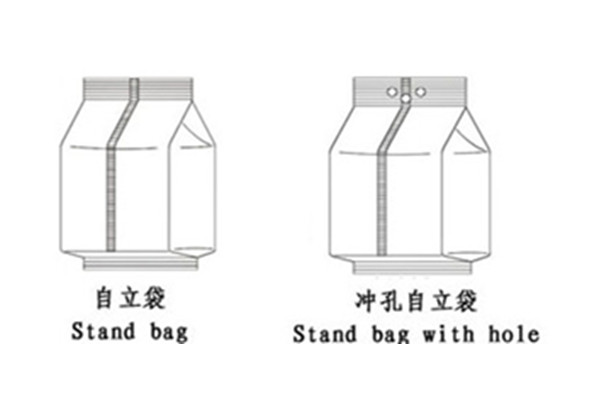

◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements. Punching hole bag & connect 5-12bags and so on.

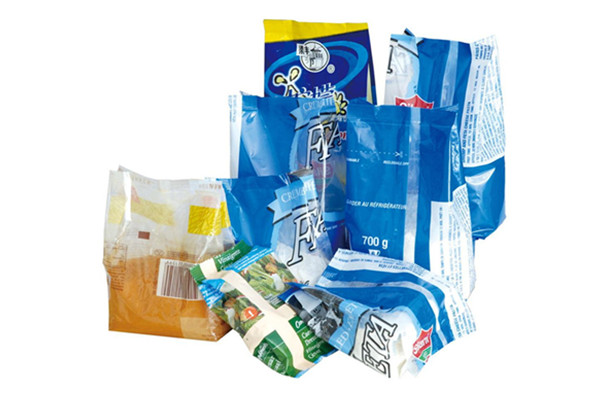

Packed bag:
