Small weight manual seasoning food packaging machine

Long Pasta Weighing Packaging Machine

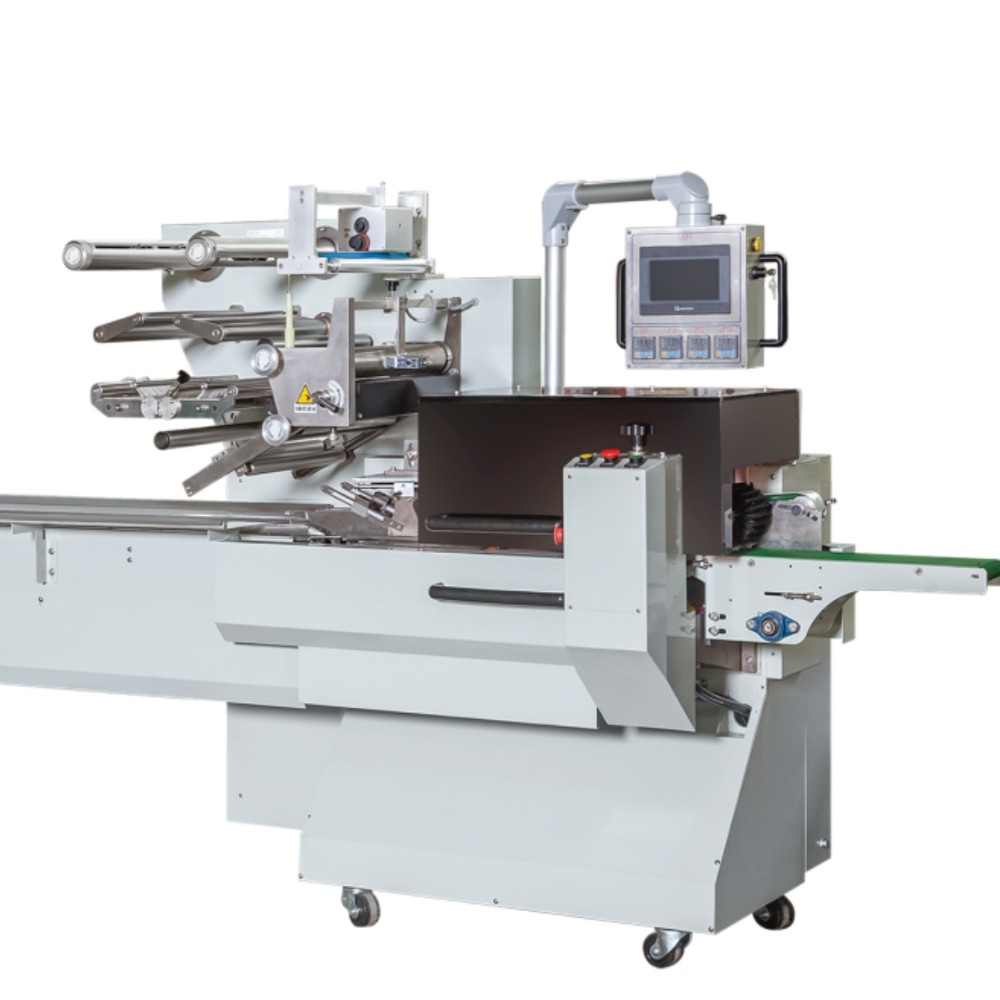

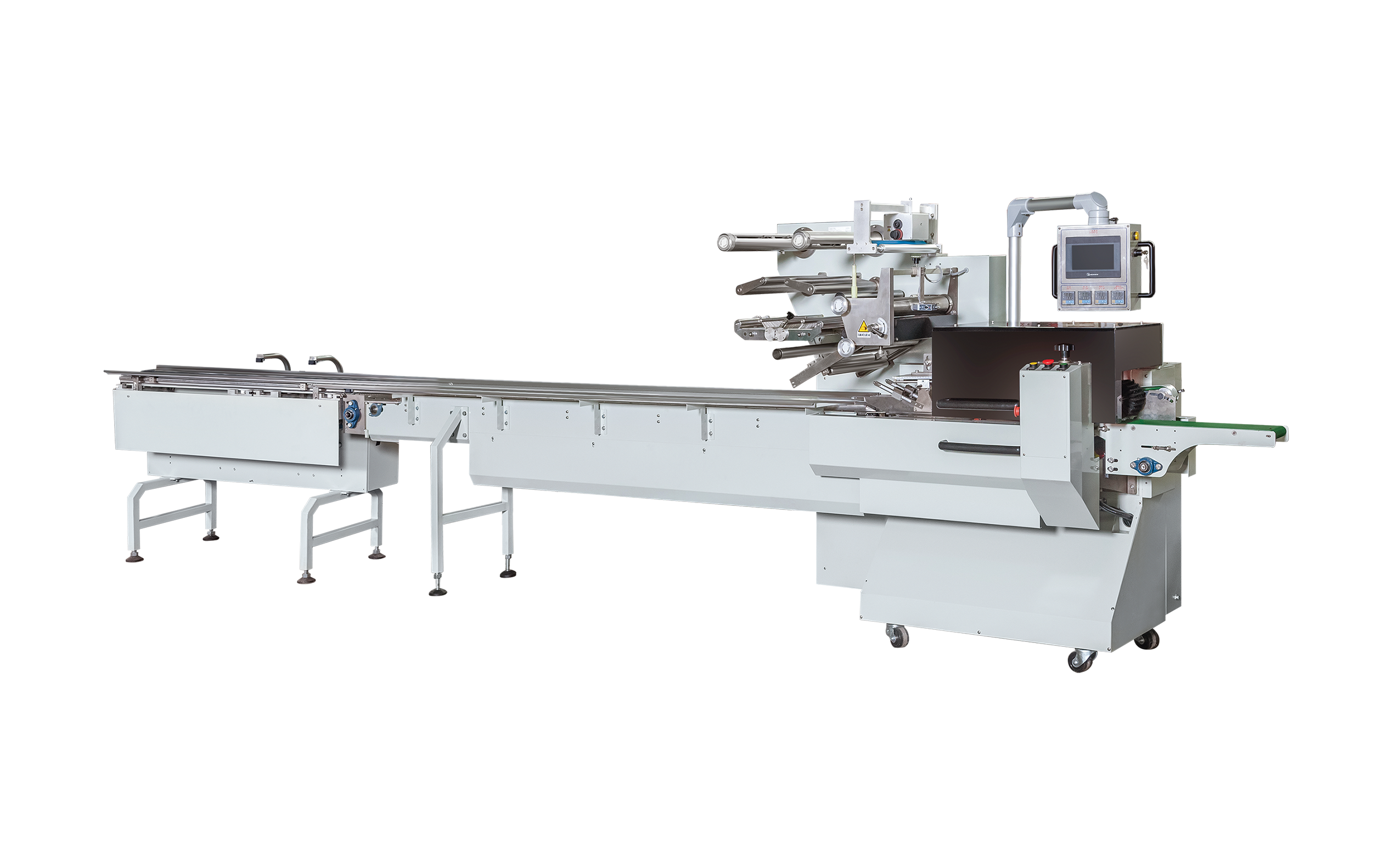

Small weight manual seasoning food packaging machine

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Small weight manual seasoning food packaging machine

Packed bag:

·Contains:

1.weighing machine 1 set

2.Packaging machine 1 set

3.Product conveying line 1 set

Application :

The package of solid block articles is suitable for moon cakes, bread, cakes, instant noodles and other foods, as well as other products.Optional with inflation device, angle folding device, date coding device, alcohol spraying device.

Technical Specification:

Model		GMQS450/120+GMQZ1350
Packaging film size（mm）		Max 450
Packaging speed（packs／min）		20-240
bag length（mm）		90-370
Product width（mm）		20-140
Product height（mm）		5-60
Machine dimensions（mm）	Packaging machine	6300x1050x1700
	Feeding machine	1350x600x1050
Power（kw）	Packaging machine	3.6
	Feeding machine	1.5
Weight（kg）	Packaging machine	1000
	Feeding machine	250
Voltage	Packaging machine	220V 50Hz
	Feeding machine	220V 50Hz

Machine Details:

Products's Advantage:
1. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.
2. Adpoted latest technology and massify design. Long operating life
3. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
4. Saving material resource.
5. Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.

6.Three servo drives with functions such as empty bag detection and automatic feeding.

7.Fully automatic connection between production line and packaging machine.Empty material waiting, automatic acceleration, automatic deceleration.

8.Automatic film connection device,adjustable bag maker.Servo independent control, belt speed, feeding.

Our Factory：

Our Products：

Our Customers：

Shipping photos:
