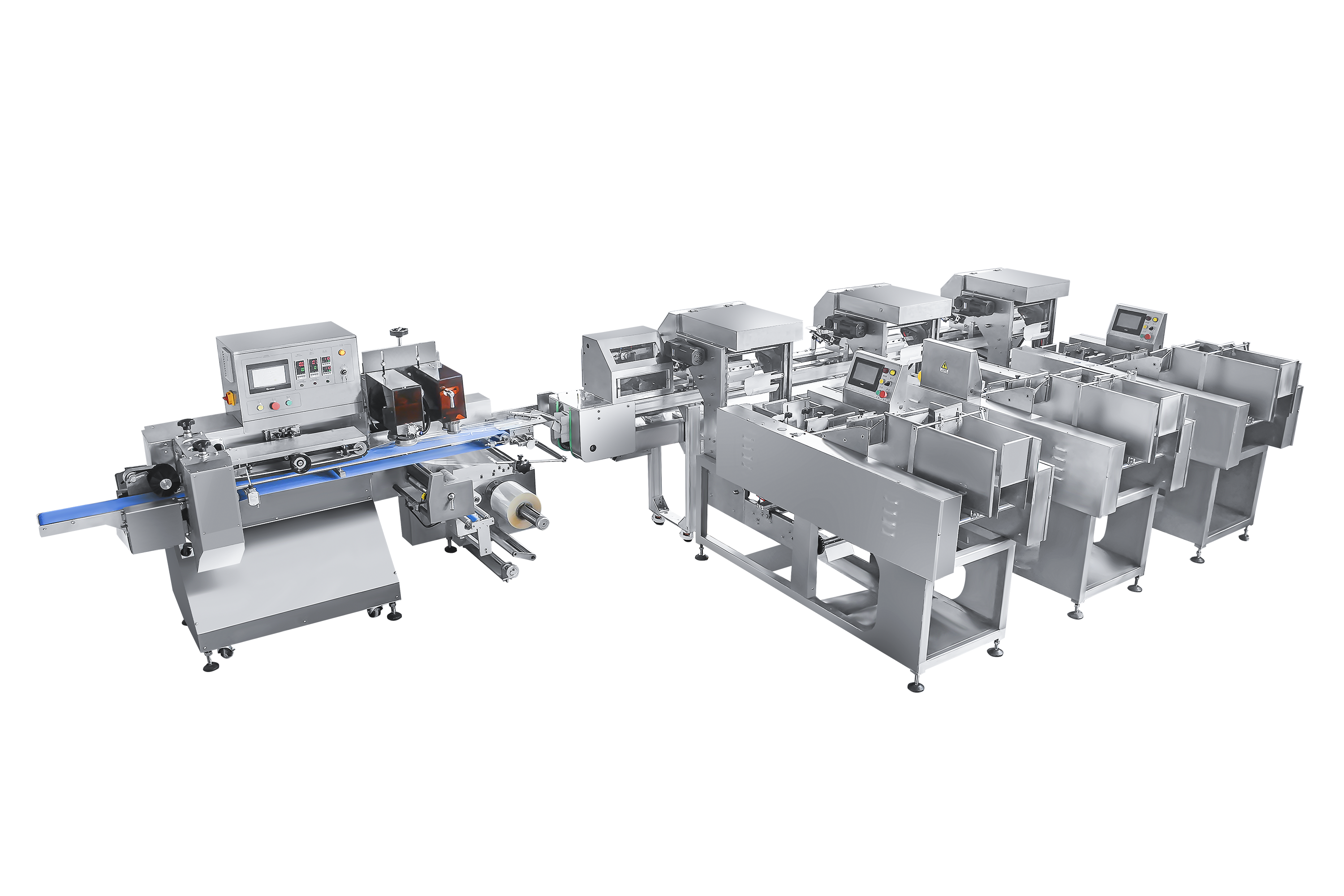

Reverse Rotation Type Noodles And Spaghetti Packaging Machine (One Driven Three)

Long Pasta Weighing Packaging Machine

Reverse Rotation Type Noodles And Spaghetti Packaging Machine (One Driven Three)

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Reverse Rotation Type Noodles And Spaghetti Packaging Machine (One Driven Three)

Packed bag:

·Contains:

1.weighing machine 3 sets

2.Lifting machine 3 sets

3.Packaging machine 1 set

4.Product conveying line 1 set

Application :

The products such as bulk noodles, spaghetti, Rice noodles and other strips,after the processes of automatic weighing, lifting, automatic sorting, transportation, packaging and other processes,through plastic packaging roll film into flat products.

Technical Specification:

Serial Number	Project	Content	Notes
1	Packaging finished product shape	Flat
2	Single package weighing（g）	100g-300g/200g-1000g
3	Noodle length（mm）	200-240mm
4	Packaging speed	30-65 packs/minute	Determine based on weight
5	Accuracy	0-4g（Over 95%）	Noodles should not be too messy or too curved
6	Shelf life of the weighing machine	One Year
7	Shelf life of the entire packaging machine	One Year
8	Equipment size	6.5×3.5×1.6 L×W×H（meters）
9	Power supply	220V
10	Power	6KW
11	The part in contact with noodles (excluding the carriage) is made of food grade 304 stainless steel material

Machine Details:

Products's Advantage:
1. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.
2. Adpoted latest technology and massify design. Long operating life
3. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
4. Saving material resource.
5. Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.

6.The packaged product is aesthetically pleasing, with neat, uniform, and even horizontal sealing and embossing.

7.Stable equipment operation with low failure rate.

8.Fast packaging speed and high precision.

9.High equipment configuration, Omron PLC control, three sets of Panasonic servo control.

10.The equipment accessories are finely processed, and the key components are processed by the processing center. The outer cover is made of food grade 304 stainless steel material.

11.Equipment protection is in place and safety is good.
