Automatic Binding Machine For Dry noodles/Spaghetti

Long Pasta Weighing Packaging Machine

Automatic Binding Machine For Dry noodles/Spaghetti

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Automatic Binding Machine For Dry noodles/Spaghetti

Packed bag:

Contains:

Weighing machine 1 set

Bundling machine 1 set

Lifting machine 1 set

Application :

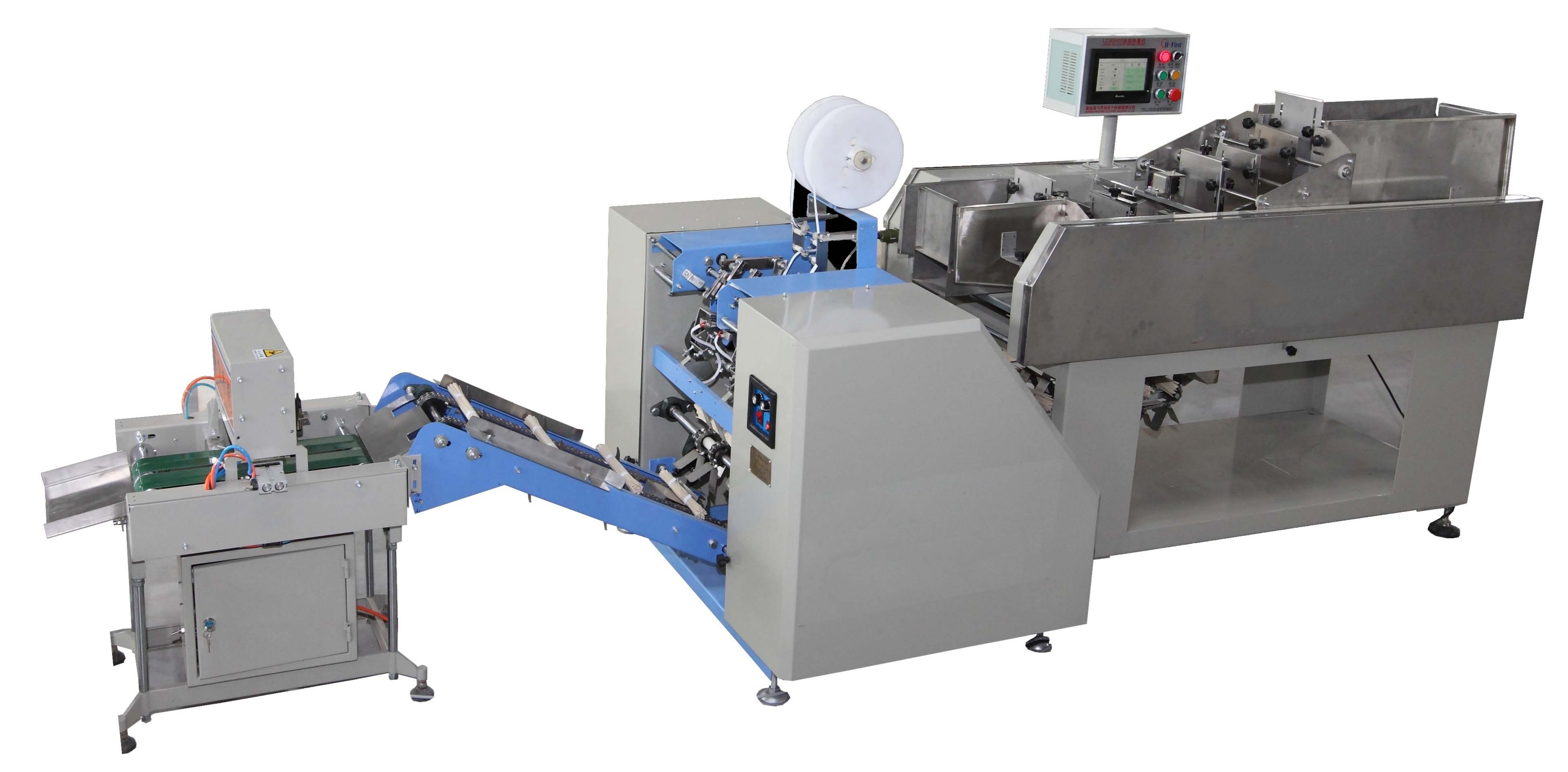

Automatic Noodle Bundling Machine is a combination of an automatic weighing machine and an automatic bundling machine. It is mainly applied to noodles bundling and packing. The advantages of this device are simple structure, convenient operation, power saving, etc., making the noodles tight and beautiful after bundling. This equipment can be used fully automatically with other equipment, and also can be used semi-automatically with manual measurement.

Technical Specification:

Model specification	KZ2000-1	KZ2000-2	KZ2000-3
Packing specification	(Noodle) 150-280 mm	(Noodle) 100-120 mm	(Noodle) 180-280 mm
Bundling range	(Weight)40-150g (Diameter)∅16-35 mm	(Weight) 15-400g (Diameter) ∅16-23 mm	(Weight) 200-300g (Diameter) ∅35-48 mm
Bundling speed	≤26 (beats/min)	≤23(beats/min)	≤25(beats/min)
Paper size	(Composite sheet)12-24mm	(Composite sheet)12-24mm	(Composite sheet)24-30mm
Dimensions	1420x940x1000 mm	1420x940x1000 mm	1420x940x1000 mm
Power source	(Single-phase)AC 220V/50Hz 165W	(Single-phase)AC220V/50Hz 165W	(Single-phase)AC220V/50Hz 165W
Weight	145kg	140kg	145kg j
