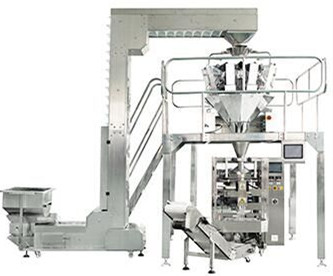

Multi-head Vertical Packaging Machine

  • Automatic vertical food packaging machine
Automatic vertical food packaging machine

Automatic vertical food packaging machine

  • Type:Forming filling sealing machine
  • Servo motor:Three servo motor
  • Payment term:T/T,L/C
  • Warrenty:One year
  • Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
  • INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Fully automatic vertical food packaging machine




Packed bag:

·Contains:


 Packaging Machine,Labeling device:Printer(ink jet, Thermal transfer, color ribbon date printer);Nitrogen device;Labeling device.


Application :


Our pasta Macaroni Nut packaging mahcine can automatically finish the process of weighing, outputting, filling and sealed packaging of short pasta and Granule products.



Technical Specification:

Model

HLB-320

HLB-420

HLB-520

HLB-720

HLB-920

Film width

120-320mm

420mm

520mm

720mm

920mm

Bag length

50-200mm

80-300mm

80-400mm

80-500mm

80-650mm

Bag width

50-150mm

50-200mm

70-250mm

60-350mm

200-450mm

Packing grams

50-150ML

50-1500ML

50-3000ML

50-5000ML



Packing speed

35-80bpm

35-80bpm

35-80bpm

35-80bpm

35-80bpm

Power



220V/380V/50/60HZ

Machine dimension

970*680*1960  mm

1200*1500*1700  mm

1500*1600*1800  mm

1600*1700*1800  mm

1600*1700*1800  mm

Machine weight

300kg

450kg

500kg

600kg

750kg

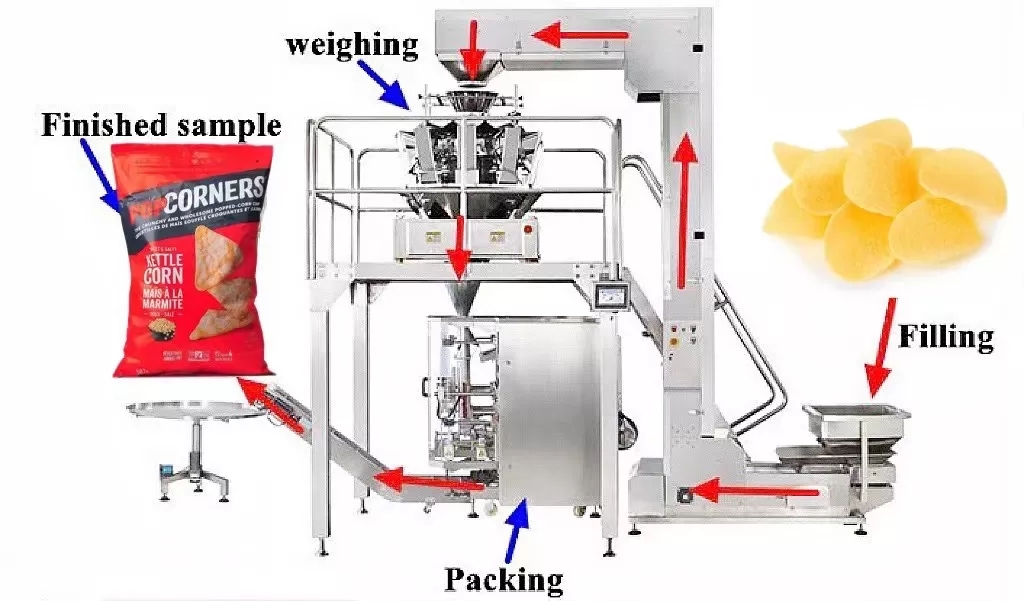

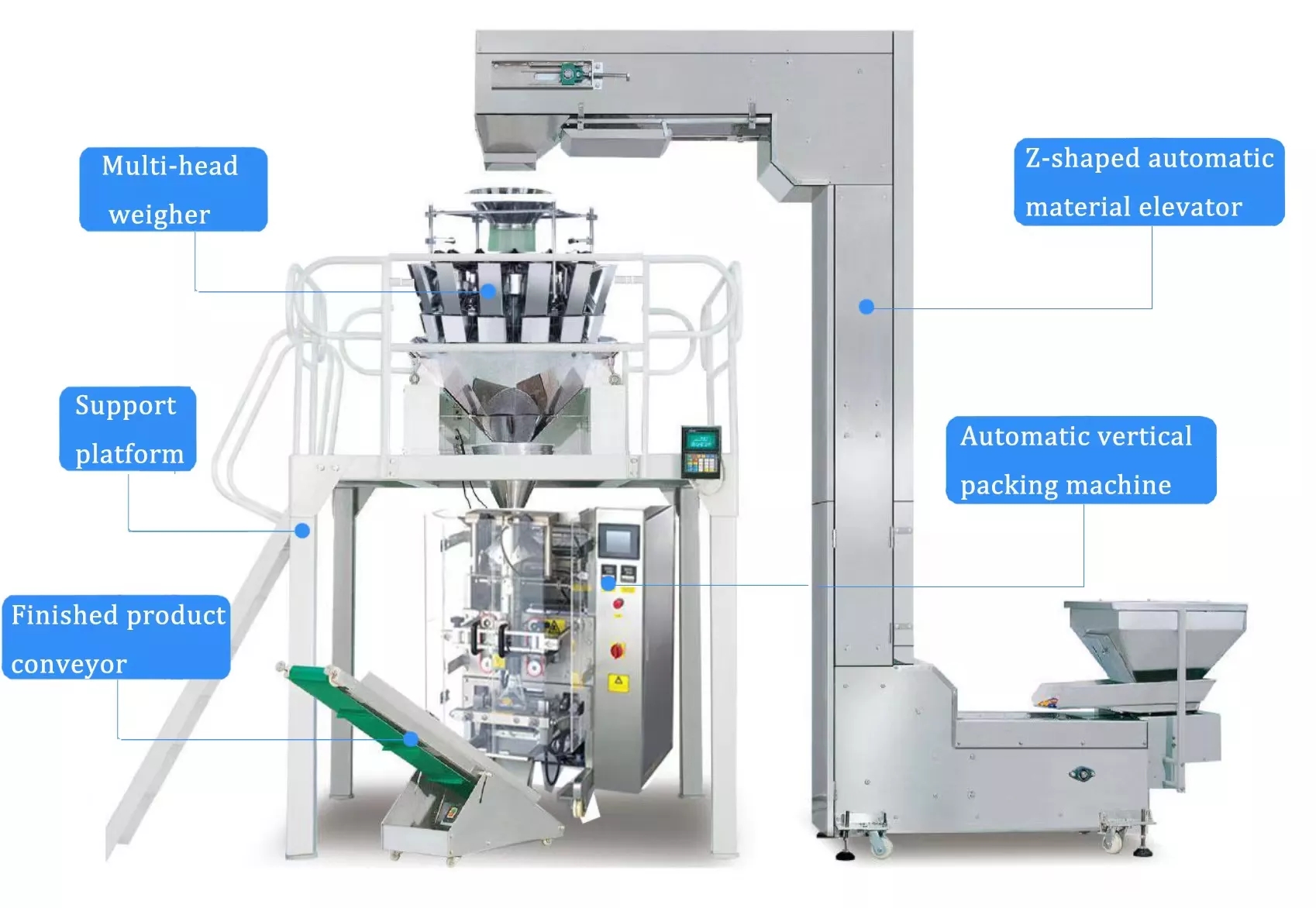

Machine Details:


Products's Advantage:


1. Efficiency: The vertical packaging machine can efficiently handle a large number of packaging needs, thereby achieving more efficient operation and higher output of the production line.
2. Accuracy: The high-precision measurement system of the vertical packaging machine can accurately measure the weight of each bag to ensure that each bag of product meets quality standards.
3. Diversity: Vertical packaging machines are suitable for various shapes and sizes of products, from food, health products, hardware and plastics, construction to cosmetics, all of which can be packaged through this machine.
4. Reliability: The vertical packaging machine adopts advanced technology and high-quality components, such as Siemens' PLC, servo motor, and encoder, to ensure its long-term stable operation and reliability.
5. Easy to operate: The vertical packaging machine is designed to be simple and easy to operate, and can be quickly started and operated without causing too much burden on the operator, reducing usage costs.
6. Space saving: Due to its vertical design, the vertical packaging machine takes up less space and can save your factory space.
7. Time and labor saving: The vertical packaging machine has completed all the processes from feeding to bag making and sealing, reducing manual packaging links, reducing Labor burden, and improving packaging efficiency.
8. Safety: The vertical packaging machine has multiple protection functions and alarm systems, such as overload protection, overheating protection, circuit breaker protection, etc., which can effectively extend the service life of the machine and protect workers' safety.

Our Factory:


Our Products:

Our Customers:

Shipping photos:
