High-speed weighing bundled three-dimensional bag packaging line

Long Pasta Weighing Packaging Machine

High-speed weighing bundled three-dimensional bag packaging line

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:High-speed weighing bundled three-dimensional bag packaging line

·Item No.: BJWD-MYD-101

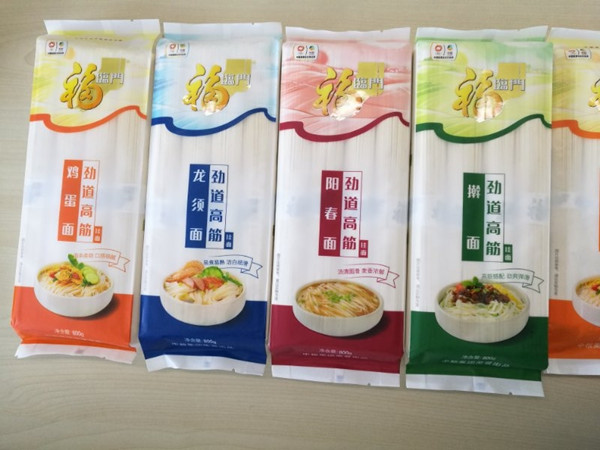

Packed bag:

·Contains:

1, packing machine

2,conveyor line

3,mixing device

4,heaping device

5, accelerating device

6, blank conveyor line

7, hoist engine

8, bundling line

9, weighing machine

Application :

This equipment is used for multi-tie plastic packaging of long-shaped foods such as bulk noodles, pasta and rice flour from 180mm to 260mm in length. The equipment is automatically weighed, bundled, lifted, transported, sorted, grouped, fed, rolled, The steps of sealing and cutting complete the whole process of high-speed multi-bundling and packaging.

Technical Specification:

Rated voltage	AC220V
Frequency	50~60Hz
Rated power	13Kw
Air consumption	28L/min
Measurement accuracy	50g ~ 150g / tie ± 2.0g pass rate ≥ 96%
Measurement accuracy	200g ~ 300g: ± 3.0g pass rate ≥ 96%
Packaging specifications	200-250g / bundle, 4 bundle/ bag
	75-150g /bundle, 4-5 bundle / bag
Packaging speed	30 ~ 45 (due to the difference in packaging quality and packaging)
Strapping form	single stripe, double stripe
Equipment size	20000×4500×2200mm (LWH) (eight examples)

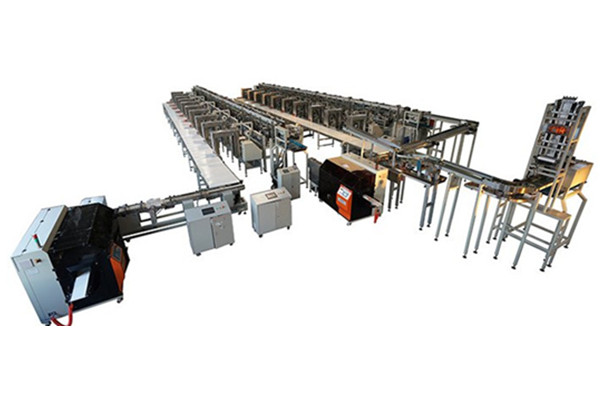

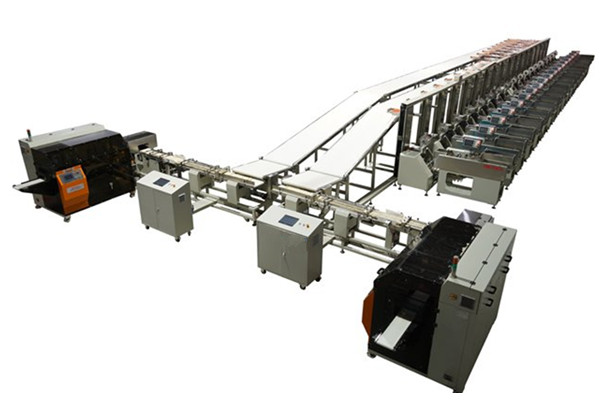

Machine Details:

Products's Advantage:
1. Adopt high-speed weighing machine, which can be equipped with ordinary packaging machine and three-dimensional bag packaging machine, international design standards;

2. Adopting an elevated design, the flow of people and logistics is unobstructed, saving material and personnel flow time, and speeding up the circulation efficiency of the workshop;

3. It has the advantages of common multi-belt packaging and high-speed weighing machine, and the efficiency is doubled;

4. Obtain national invention patents and domestic advanced high-end quantitative packaging links;

5. The production line can carry out the matching of different quantity of weighing machine according to the capacity demand, which is more flexible.
