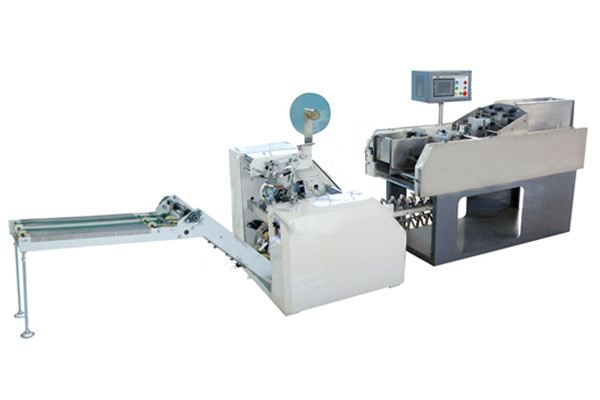

Noodle Pasta Single-stripe Weighting Bundling Machine

Long Pasta Weighing Packaging Machine

Noodle Pasta Single-stripe Weighting Bundling Machine - copy

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: noodle pasta packing machine

·Product name:Noodle Pasta Single-stripe Weighing And Bundling Machine
·Item No.: BCKN150/28 DPA

Packed bag:

Contains:

1,weighting machine: one set

2,single-stripe bundling machine: one set

3,lifting machine: one set

Applications:

Automatically finish the process of weighting, outputting, filling and single-stripe bundling packing of the Spaghetti and other noodle.

Technical specification:

Work object	Noodle,spaghetti,pasta
Length of noodle	(180mm~260mm)±5.0mm
Thickness of noodle	0.6mm~1.4mm
Width of noodle	0.8mm~3.0mm
Diameter of bundle	Ø15mm~30mm

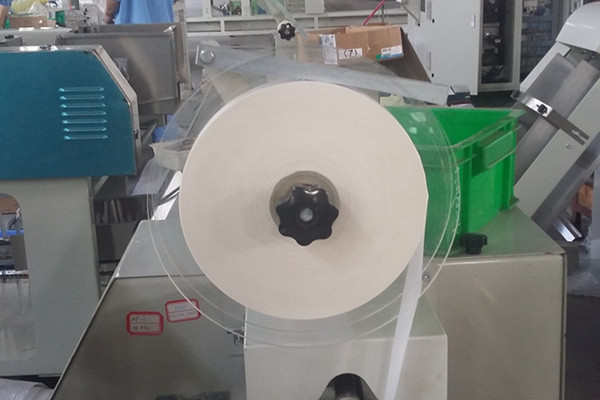

Specification of Tape	(composite paper width)12mm~24mm
Measurement range	40g~150g
Measurement speed	≤28bars/min
Measurement accuracy	±1.0g(within 97%)
Speed and accuracy of measurement	differs from the quality and the unit weight of noodle
Measurement method	Touch screen control two measurement
setting of measured value	Digital input
Display of measured value	Accurate to 0.1g
Zero adjustment	Automatically or manually
Size	3850mmx1000mmx1350mm
Voltage/power	(single-phase)AC220V/50-60HZ/750W

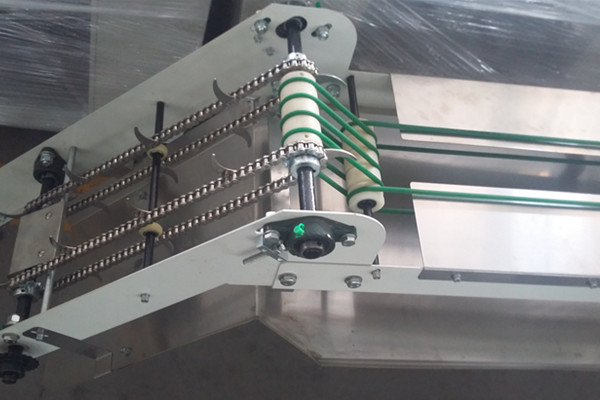

Machine Details:

Products's Advantage:
I. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.

1,Our machine use inported electrical components and inported motor,job stability,measurement speed and high accuracy.

2.All the parts which contact with noodles are made of stainless steel.

3.Only one operator without the reinspction.using the machine can reduce labor intensity and improve work efficiency.

4.The machine performance is stable ,and can finish one stripe packing one time.
