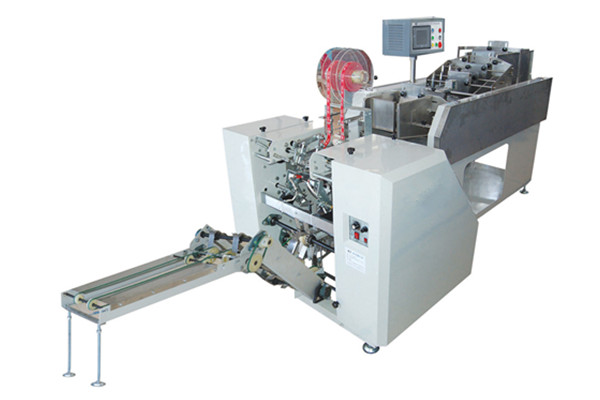

Noodle Pasta Double-stripe Weighting Bundling Machine

Long Pasta Weighing Packaging Machine

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: noodle packing machine

·Product name: Noodle Pasta Double-stripe Weighting Bundling Machine
·Item No.: BCKN100/25 SPA

BCKN500/20 SPB

Packed bag:

Contains:

1,weighting machine: one set

2,double-stripe bundling machine: one set

3,lifting machine: one set

Applications:

Automatically finish the process of weighting, outputting, filling and double-stripe bundling packing of the Spaghetti and other noodle.

Technical specification:

Work object	Noodle,spaghetti,pasta
Length of noodle	(180mm~260mm)±5.0mm
Thickness of noodle	0.6mm~1.4mm
Width of noodle	0.8mm~3.0mm
Diameter of bundle	Ø15mm~30mm Ø35mm~50mm
Specification of Tape	(composite paper width)12mm~30mm
Measurement range	50g~150g 200g~500g
Measurement speed	≤25bars/min
Measurement accuracy	±2.0g(within 96%)
Speed and accuracy of measurement	differs from the quality and the unit weight of noodle
Measurement method	Touch screen control two measurement
setting of measured value	Digital input
Display of measured value	Accurate to 0.1g
Zero adjustment	Automatically or manually
Size	3850mmx1100mmx1350mm
Voltage/power	(single-phase)AC220V/50-60HZ/800W
