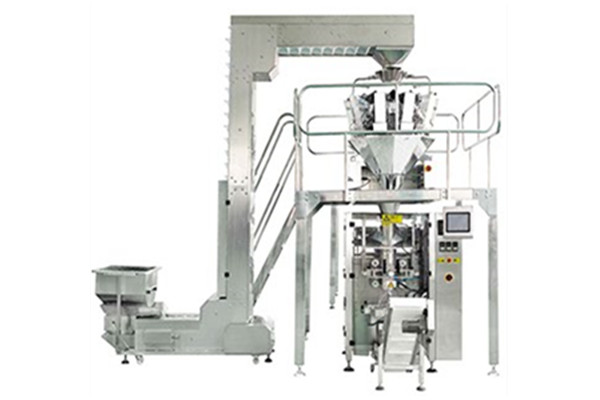

MYD-520A 10/14 multi-heads weighing and packing machine

Multi-head Vertical Packaging Machine

MYD-520A 10/14 multi-heads weighing and packing machine - copy - copy

Type:Forming filling Weighing sealing machine
Payment term:T/T,L/C
Warrenty:One year
Product description: Small vertical packaging machine for puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.
INQUIRY

·Product category: Vertical packing machine

·Product name :MYD-520A 10/14 multi-heads weighing and packing machine

Usage:

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.

Technical specification:

Items	Content
Packing speed	30-80 bags / min
Bag size	(W)90-250mm (L)80-350mm Pulling belt two time can max Length 450mm.
Bag making mode	Pillow-type bag, punch
Range of measuring	Max 1500ml
The maximum width of packing film	520mm
Thickness of film	0.04-0.10mm
Air consumption	0.4m3/Min 0.6Pa
Total powder /voltage	200L/min 0.7×10⁵Pa
Main power/voltage	2.2KW/220V 50-60Hz
Dimension	1430×1200×1700mm
The weight of switchboard	450kg

10 Heads Weigher

Model	BS-A1-10L1.6
Measuring range	3-3000g
Accuracy	±0.1-1.5g
Max speed	80bags/min
Hopper volume	1.6L
display	7 inches touch screen
Options	Pattern/aggregate hopper
parameter	99 kinds
Power requirements	AC110V/220V 50Hz/60Hz
Packing dimension	*108108110cm+907083cm*
Net weight	420kg

Features:

◆PLC computer control system.PLC from Janpan or Germany.

◆Big touch From Tai wan . Easy to operate and control the machine.

◆High precise positioning with servo film transporting system .

◆With warn protection function.

◆The machine combines with a 10 heads weigher, it will automatically complete all packaging processes from measuring, feeding, filling, printing , finished bag.

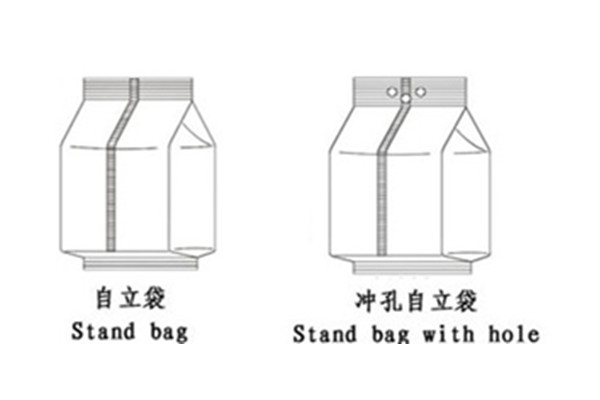

◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements. Punching hole bag & connect 5-12bags and so on.

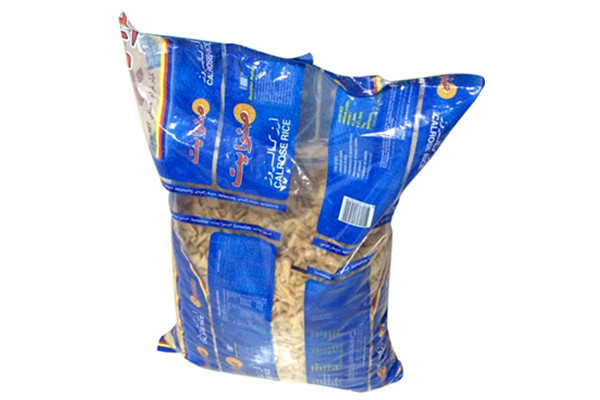

Packed bag:
