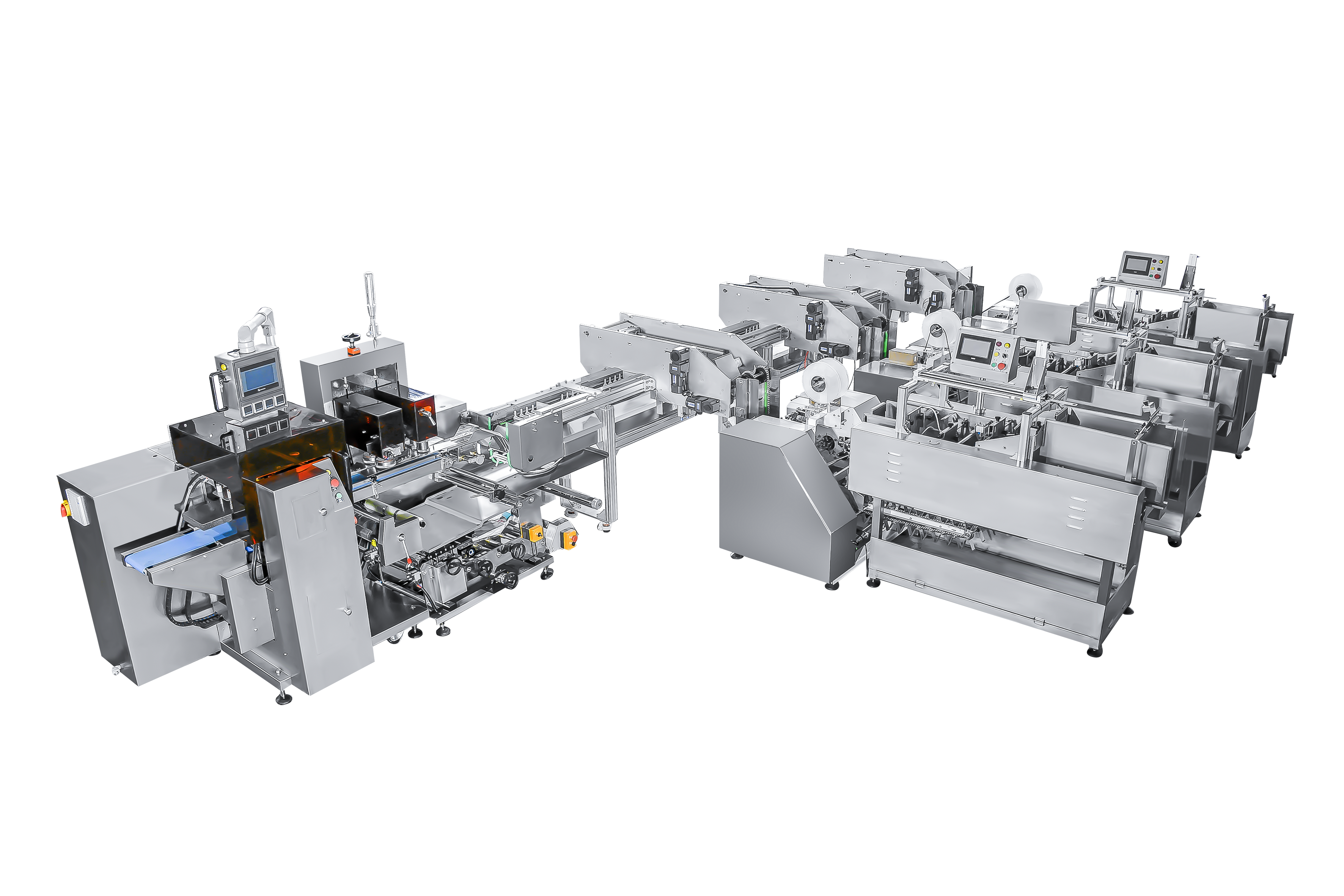

Noodles/RiceNoodles/Spaghetti Strapping And Connecting Reciprocating Three-Dimensional Bag Packaging Machine (One For Three)

Long Pasta Weighing Packaging Machine

Noodles/RiceNoodles/Spaghetti Strapping And Connecting Reciprocating Three-Dimensional Bag Packaging Machine (One For Three)

Type:Forming filling sealing machine
Servo motor:Three servo motor
Payment term:T/T,L/C
Warrenty:One year
Product description: We are a leading and professional packing machine manufacturer in CHINA for more than 15 years,there are many different kinds of packing machines in our factory,such as:Noodle and spaghetti weighing a
INQUIRY

·Product category: touch-screen noodle packing machine

·Product name:Noodles/RiceNoodles/Spaghetti Strapping And Connecting Reciprocating Three-Dimensional Bag Packaging Machine(One For Three)

Packed bag:

·Contains:

1.weighing machine 3 sets

2.Lifting machine 3 sets

3.strapping machine 3 sets

4.Packaging machine 1 set

5.Product conveying line 1 set

Application :

The products such as bulk noodles, spaghetti, Rice noodles and other strips,after the processes of automatic weighing, lifting, automatic sorting, transportation, packaging and other processes,through plastic packaging roll film into flat or three-dimensional products.

Technical Specification:

Serial Number	Project	Content	Notes
1	Packaging finished product shape	Flat or three-dimensional shape
2	Single package weighing（g）	200g-1000g
3	Noodle length（mm）	200-240mm
4	Packaging speed	40-60 packs/minute	Determine based on weight
5	Accuracy	0-4g （Over 95%）	Noodles should not be too messy or too curved
6	Shelf life of the weighing machine	One Year
7	Shelf life of the entire packaging machine	One Year
8	Equipment size	6.5×3.5×1.6 L×W×H（meters）
9	Power supply	220V
10	Power	6KW
11	The part in contact with noodles (excluding the carriage) is made of food grade 304 stainless steel material

Machine Details:

Products's Advantage:
1. Our packing machine use high-quality imported components, Chinese characters supporting touch screen, PLC, which is easy to operate. Machine speed is controlled by inverter and can work synchronized production with other system. With anti-theft device.
2. Adpoted latest technology and massify design. Long operating life
3. Weighting machine use Chinese characters supporting touch screen, PLC, which make the packing speed faster and more accurate. It is the perfect substitute products of the traditional packing machine
4. Saving material resource.
5. Reduce the chance of the long-term contact of human body or still can be opposite through food healthy generation harm.

6.The main machine of reciprocating packaging machine has fast packaging speed and stable operation.

7.The M three-dimensional bag has good effect, with a flat and wrinkle free horizontal seal, and does not deviate from the version.

8.The new structure hopper does not deform, and the entire machine runs smoothly with high accuracy.

9.New conveyor line, achieving high-speed operation, Prevent noodles from revealing and popping out, new secondary material receiving hopper, flush outlet, more efficient and stable.

10.High yield, above 98%.

11.Automatic removal function of pressure noodles on packaging horizontal sealing cuts.

12.The brake system of the paper roll has uniform force and is not affected by the large or small film size.

Our Factory：

Our Products：

Our Customers：

Shipping photos:
