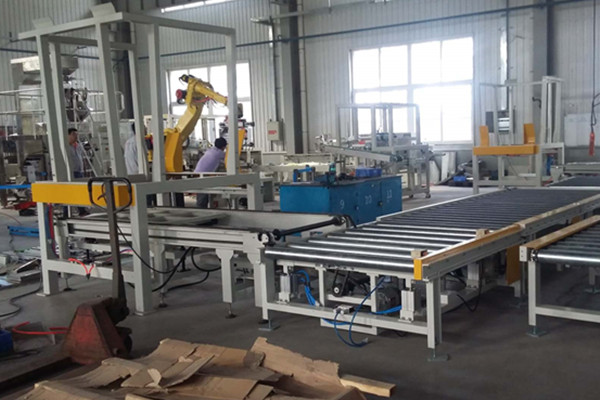

Pallet library

Application range:

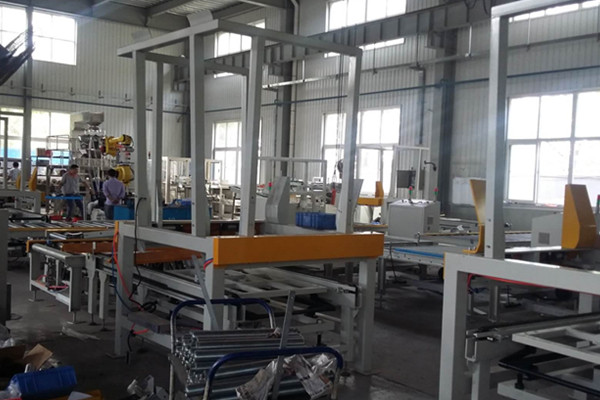

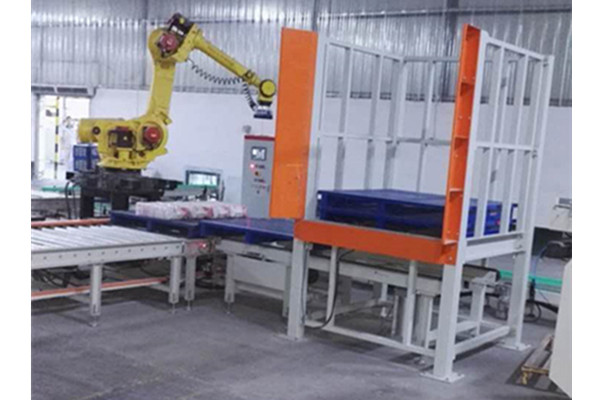

1. Automatic pallet bin, main functions: storage tray, output tray and empty tray alarm;

2, automatic lifting device, the main role: automatic up and down transport tray;

3, the pallet conveyor, the main role: the pallet is transported to the transfer conveyor;

4, transfer conveyor, the main role: the tray is placed and placed in the pallet load heavy-duty conveyor;

5, code position heavy-duty conveyor, the main role: palletizing and output material conveyor;

6, heavy-duty conveyor, the main role: storage and output material conveyor;

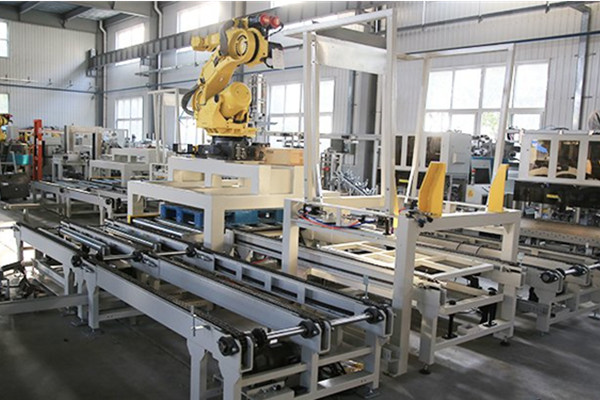

7, the robot part, the main role: the grab bit material placed in the code position code 垛;

8, grab the bit conveyor, the main role: to transport the material, after sensing the material output signal to inform the robot palletizing;

9, electric control cabinet, the main role: editing procedures.

Product Highlights:

1. Place the pallet in the pallet bin (maximum capacity 10 pieces). When the pallet conveyor is over the pallet, output the signal. The pallet bin is equipped with the automatic lifting device to place the bottom tray on the pallet conveyor. The pallet conveyor transports the pallet to the pallet conveyor. Sensing area

2. When the photoelectric induction code clamps the heavy-duty conveyor without tray, the transfer conveyor and the pallet conveyor start to transport the pallet to the palletized heavy-duty conveyor, and the palletizing area photoelectrically senses the pallet, and the output is to be palletized. signal;

3. When the photoelectric sensing material on the conveyor is grabbed, the material in-position signal is output, the robot starts the palletizing, and after the palletizing is completed, the palletizing heavy-duty conveyor and the heavy-duty conveyor start to output the full material. When the tray conveyor is over the tray, press 1 to repeat the cycle and palletize.

The main technical parameters:

1, full weight: ≤ 0.6 tons (8-10 layers), pallet height does not exceed 1.6 meters (wood tray);

2, the method of grabbing: suction cup;

3. Material: carton, ≤5Kg/carton;

4, speed: 1000 boxes / hour;

5, power supply V: 380V / 50 ~ 60Hz;

6, the total power KW: 15kW;

7, air pressure: 0.6-0.7Mpa;

8, covers an area of 20 square meters, 2.6 meters high (the robot arm set meets the height of 3.5 meters)
