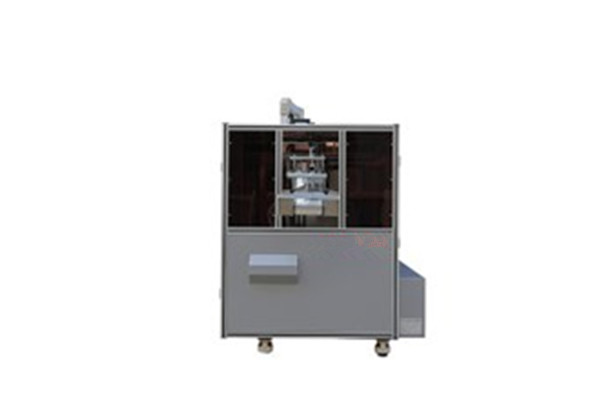

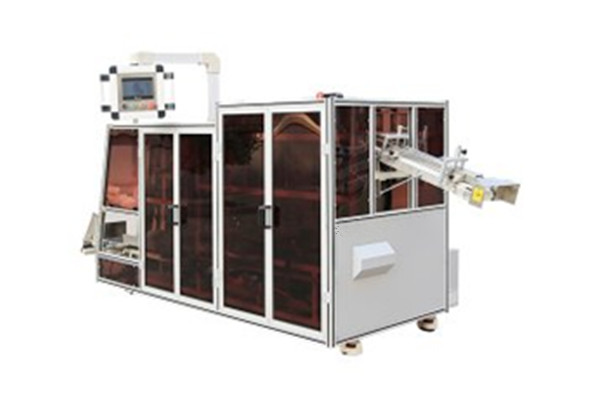

Plastic bag flat pocket smart bagging machine

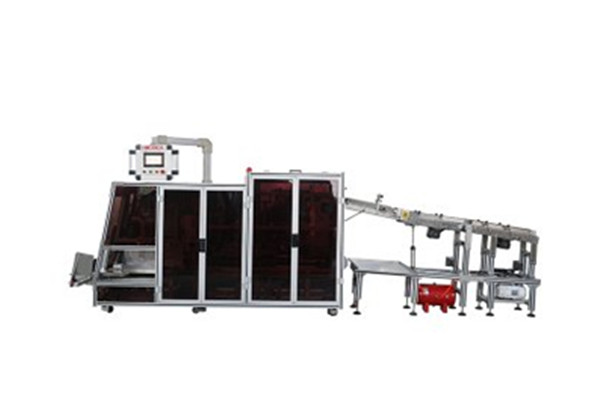

Plastic bag flat pocket smart bagging Line

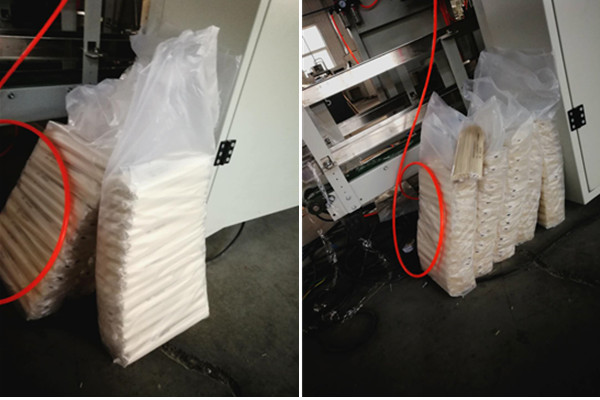

Packed bag

Application range

This machine is suitable for flat bag collection of long-shaped composite film packaging single-bag finished products such as noodles, pasta, rice noodles, fans, yuba, etc., and fully automatic flat pockets are completed by automatic feeding, material handling, bagging, bagging and sealing. The whole process of packaging, product design standards are international standards.

Product Highlights

1. Unique single-station continuous material handling device, small in size, simple and stable in structure, can realize high-speed continuous material sorting, simple and quick operation, and good compatibility;

2, the use of scissors-type sealing mechanism, sealing effect is good, sealed upside down output mechanism, the packaged materials are automatically pushed to the discharge board, easy to operate and check;

3, each packaging production line is equipped with a set of equipment, 1 person management, daily production of about 40 tons, saving 2 people.

The main technical parameters

1. Rated voltage (V): single phase 220V / three phase 380V

2. Frequency (Hz): 50/60

3. Rated power (kW): 3.5

4, gas consumption (L / min): 20

5, packaging range (g): 350 ~ 1000 (single bag material weight)

6, single package weight (kg): 10 ~ 20

7, the number of single package (piece / bag): 10 ~ 20

8, packaging speed (bags / min): 3 large bags / minute

9, packaging material length (mm): 200 ~ 240

Material single bag width (mm): 80 ~ 130

The total height of the material layer (mm): 360 ~ 630

10, equipment size L * W * H (mm): 3400 × 1450 × 1880
