Multi-head Vertical Packaging Machine

  • MYD-520A combine weighing and  packing machine
  • MYD-520A combine weighing and  packing machine
  • MYD-520A combine weighing and  packing machine
MYD-520A combine weighing and  packing machineMYD-520A combine weighing and  packing machineMYD-520A combine weighing and  packing machine

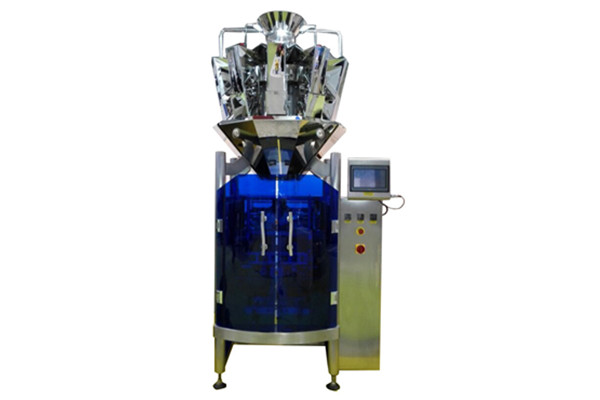

MYD-520A combine weighing and packing machine

  • Type:Forming filling Weighing sealing machine
  • Payment term:T/T,L/C
  • Warrenty:One year
  • Product description: Small vertical packaging machine for puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.
  • INQUIRY

·Product category: Vertical packing machine

·Product name :MYD-520A combine weighing and  packing machine

Usage:

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.


Technical specification:

Items

Content

Packing speed

30-80 bags / min

Bag size

(W)90-250mm (L)80-350mm

Pulling belt two time can max Length 450mm.

Bag making mode

Pillow-type bag, punch

Range of measuring

Max 1500ml

The maximum width of packing film

520mm

Thickness of film

0.04-0.10mm

Air consumption

0.4m3/Min 0.6Pa

Total powder /voltage

200L/min 0.7×105Pa

Main power/voltage

2.2KW/220V 50-60Hz

Dimension

1430×1200×1700mm

The weight of switchboard

450kg

Features:

PLC computer control system.PLC from Janpan or Germany.

◆Big touch From Tai wan . Easy to operate and control the machine.

◆High precise positioning with servo film transporting system .

◆With warn protection function.

◆The machine combines with a 10 heads weigher, it will automatically complete all packaging processes from measuring, feeding, filling, printing , finished bag.

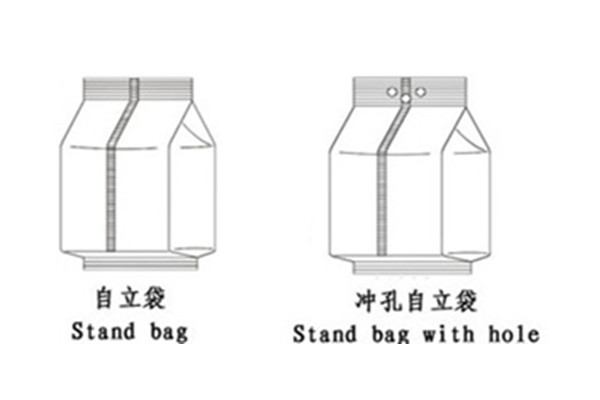

◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements. Punching hole bag & connect 5-12bags and so on.

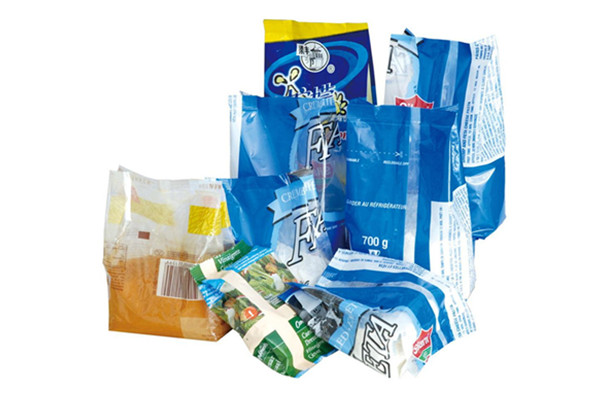

Packed bag:
