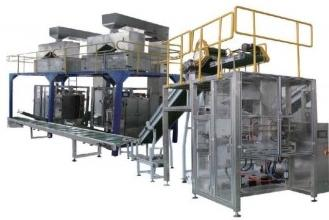

·Product name :MYD-1100 bag-in-bag packaging unit

Application:

This unit neatly packs small package products (150-1000g) into composite film plastic bags and heat seals them according to the required arrangement, such as single-row or double-row horizontal grouping, to achieve fully automatic completion of the packaging process. This fully automatic operation greatly reduces the investment of manpower, material and financial resources, thereby reducing production costs and improving production efficiency.

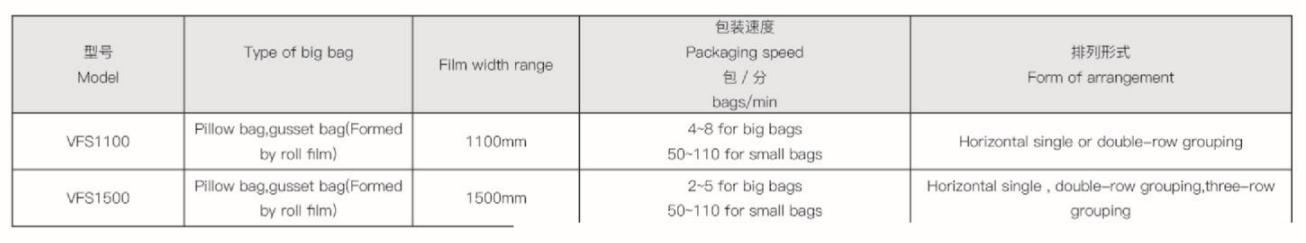

Technical specification:

Features:

This unit is widely used in the packaging of powdered and granular materials such as washing powder, salt, seeds, and milk powder. It is an ideal secondary packaging machine for many large enterprises.

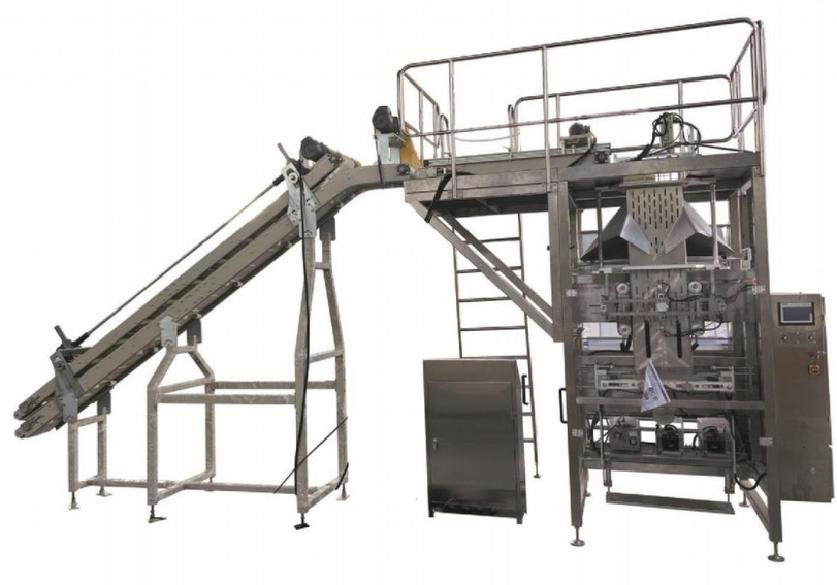

The equipment includes double-layer inclined conveyor, high-speed conveyor, counting and sorting machine, vertical bag making, bag throwing machine, finished product conveyor, etc.

Production process:

Inner bag → horizontal conveyor → double-layer inclined conveyor → high-speed conveyor → counting and sorting machine → vertical bag making and packaging machine → sealing → product output.

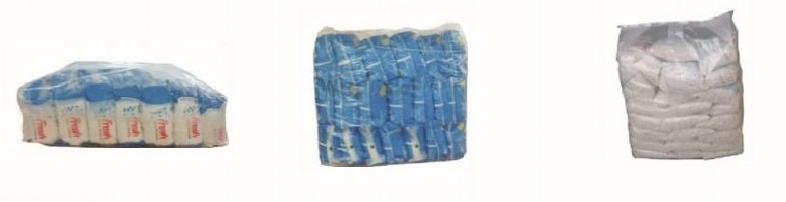

Packed bag:
