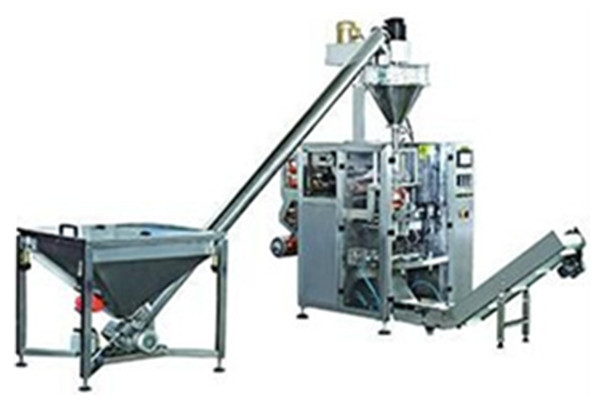

MYD-420D Powder Packaging Machine

Multi-head Vertical Packaging Machine

MYD-420D Powder Packaging Machine 0

Type:Forming filling Weighing sealing machine
Payment term:T/T,L/C
Warrenty:One year
Product description: Small vertical packaging machine for milk powder and chemical powder
INQUIRY

·Product category: Vertical packing machine

·Product name :MYD-420D Powder Packaging Machine

Usage:

1.The machine will automatically compelete all packaging processes from feeding, measuring, filling, printing, finish bag. High precision and effciency.

2.It Suitable for measuring the powder materials .such as milk powder and chemical powder

Technical specification:

Items	Content
Packing speed	5-80 bag/min
Bag size	(Width)70-200mm (Length)50-300mm
Bag making mode	Pillow-type bag, standing bag, punch hold and connect
Range of measuring	150-1300ml
The maximum width of packing film	420mm
Thickness of film	0.04-0.08mm
Air consumption	200L/min 0.7×10⁵Pa
Main power/voltage	2.2KW/220V 50-60Hz
Dimension	1400×970×1600mm
The weight of switchboard	400kg

Auger filler

Metering system	Screw rotary filling
Packaging weight	10-1000g (alter screw accessory)
Packaging precision :	Packing weigh t≤100g accuracy≤0.5-1g Packing weight100-1000g accuracy≤0.5%-1% Packing weight﹥1000g accuracy:0.25%-0.5%
Packaging speed	10-50 bags/min
voltage	Three phase 220v ( AC 220v) 50-60HZ
Machine power	1.5kw
Machine weight	80kg
volume	50L

Feature

◆PLC computer control system. PLC from Japan or Germany

◆Big touch From Tai wan . Easy to operate and control the machine

◆High precise positioning with servo film transporting system .Servo motor from Germany Siemens to ensure stable.

◆Warn protection function

◆The machine will automatically complete all packaging processes from measuring, feeding, filling,

printing ,finished bag .

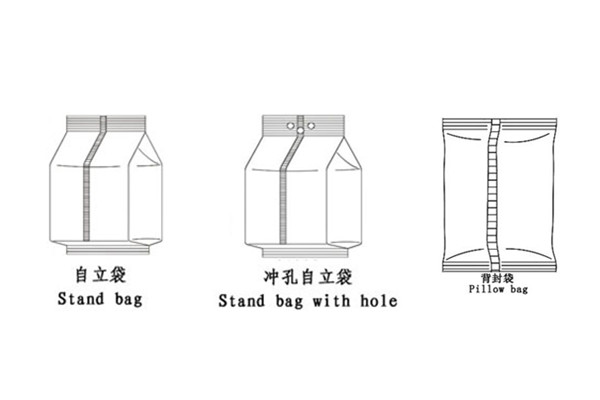

◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements. Punching hole bag & connect 5-12bags and so on .

◆Simple construct, reliable circulator, easy maintenance

◆The machine adopts the screw pole putting material, adopting servo code and the microcomputer technology control is the main. Simultaneous control, sensitive action. Low noise, outstanding, reliable measure, speed quickly. High precision. Another it can display the measure counter.

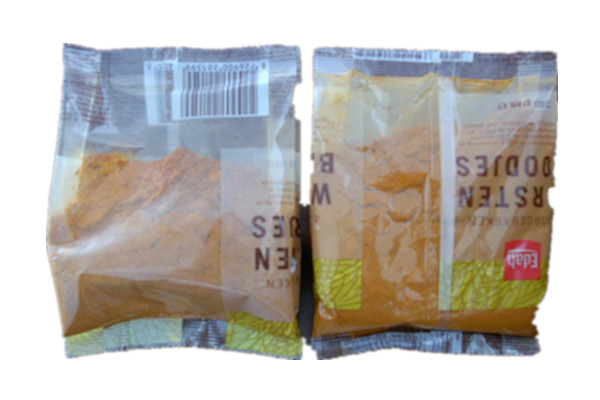

Packed bag:
