MYD-D Servo Motor Under Film Feeding Packaging Machine

Type:Forming filling Weighing sealing machine
Payment term:T/T,L/C
Warrenty:One year
Product description: Packaging machine,Pillow packaging machine,vertical packaging machine,instant noodle packaging machine,Fans Packaging Machine,Rice vermicelli packaging machine
INQUIRY

·Product category: Horizontal packing machine

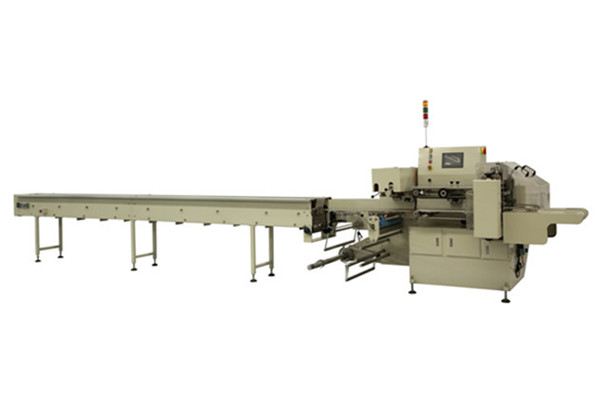

·Product name :MYD-D Servo Motor Under Film Feeding Packaging Machine

Usage:

It Suitable for assembly packaging of the products of several blocks such as sausage,fresh noodles,ice pops,several blocks of instant noodle, several bags of milk, fans, rice vermicelli,etc.

Special Recommendation
This series packing machine are specially designed for assembly packing of several blocks. This machine adopts film bottom sending to automatically wrap, form and seal.

Characteristics:
1. Two servo motors with higher control precision realize step-less control and dynamic adjusting during operation.
2. Large colored touch screen store, pick up, automatically adjust, track, find cutting point, alarm, indicate barriers, accumulatively count packs, bag length and speed automatic display, which can realize precise cut and seal.
3.With photo-cell detecting the color mark and dual-tracing system, this machine can effectively eliminate any packing error and avoid materials waste.
4. Unique type vertical sealing design makes the seal at low temperature, which effectively reduces the film burning and packing wastes.
5. Adjustable bag former and pitches enable the change of packing products more conveniently.
6. With timing belt transmission, this machine has appearance, lower noise and less vibration.
7. Bottom film sending is suitable for assembly packaging of several blocks.

Technical specification:

Model Spec	MYD-D 450/99	MYD-D 450/120		MYD-D 450/150	MYD-D 590/120		SF-D2 590/150	SF-D2 590/180		SF-D2 720/210
Film Width(mm)	<450	<450		<450	<590		<590	<590		<720
Size of Package L: Length(mm) W: Width(mm) H: Height(mm)	L:90-400 W:10-150 H:5-40	L:100-400 W:10-150 H:15-60		L:120-450 W:10-150 H:30-75	L:100-400 W:30-200 H:15-60		L:120-450 W:30-200 H:30-75	L:140-480 W:30-200 H:40-100		L:180-550 W:50-250 H:50-150
Packing Speed ( Bag/min )	30-160	30-140		30-120	30-140		30-120	30-100		25-80
Dimension (mm)	5000×965×1750 3mconveyor				5000×1105×1750 3mconveyor					5000×1240×1700
Film Material	compound Film of heat seal :OPP/PE,PT/PE,AL/PE, etc
Weight(kg)	1000	1000	1000			1200	1200	1200		1300
Motor Power	Host motor1KW one set; film motor 0.75KW
Heating Power	450W, 2sets 400W, 4 sets
Main Power	Single phase 220V, 50HZ
Total Power	4.5KW	4.5KW	4.5KW			4.5KW	4.5KW		4.5KW	4.5KW
