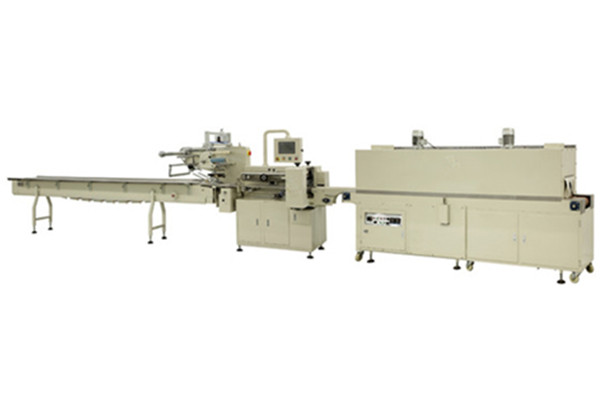

MYD-R Type Automatic Heat Shrink Packaging Machine

Snack Foods Packaging Machine

MYD-R Type Automatic Heat Shrink Packaging Machine

Type:Forming filling sealing Heat Shrink machine
Payment term:T/T,L/C
Warrenty:One year
Product description: Packaging machine,Pillow packaging machine,vertical packaging machine,instant noodle packaging machine,Fans Packaging Machine,Heat shrink packaging machine,instant noodle cup packaging machine
INQUIRY

·Product category: Horizontal packing machine

·Product name :MYD-R Type Automatic Heat Shrink Packaging Machine

Application:
Shrink Packaging Machine(MYD-R) is suitable for packing bowls or barrels of convenience food, fruit milk, milk tea, fine dried noodle, slice buns, tableware (one-time disinfection tableware), several yoghurt cup, toothpaste, cosmetics, mosquito-repellent incense, batteries, and outer heat shrinkable packaging.

Special Recommendation:
Packaging machine SFR is specially designed for assembly line, large quantity of heat shrinkable packaging and design of automatic heat shrinkable packer. According to the specific condition of product, optional automatic feeding system can realize unattended operation. This machine adopts closed packaging and continuous operation, so it has high efficiency and product has a line seal after packing.

Features:
1. Packaging machine MYD-Radopts servo motor with higher control precision realize step-less control and dynamic adjusting during operation.
2. Large colored touch screen store, pick up, automatically adjust, track, find cutting point, alarm, indicate barriers, accumulatively count packs, bag length and speed automatic display, which can realize precise cut and seal.
3. With photo-cell detecting the color mark and dual-tracing system, this machine can effectively eliminate any packing error and avoid materials waste.
4. New type vertical sealing design makes the seal at low temperature, which effectively reduces the film burning and packing wastes.
5. Adjustable bag former and pitches enable the change of packing products more conveniently.
6. With timing belt transmission, this machine has appearance, lower noise and less shake.
7. Double temperature area in shrink stove can achieve automatic temperature control.
8. Efficient air circulation ensures the quality of contraction
9. Redundant film resection and recovery device.

Technical specification:

Model	MYD-R	MYD-R	MYD-R	MYD-R	MYD-R	MYD-R
Spec	450/120	450/150	590/120	590/150	590/180	590/210
Film Width(mm)	< 450	< 450	< 590	< 590	< 590	< 590
Size of Package	L: 100-400	L: 120-450	L: 100-400	L: 120-450	L: 140-480	L: 180-520
L: Length(mm)	B: 10-150	B: 10-150	B: 30-200	B: 30-200	B: 30-200	B: 30-200
B: Width(mm)	H: 15-50	H: 30-70	H: 15-50	H: 30-70	H: 40-100	H: 50-130
H: Height(mm)
Packing Speed	30-150	30-120	30-150	30-120	30-100	30-80
(Bag/min )	30-150	30-120	30-150	30-120	30-100	30-80
Dimension (mm)	5000× 965× 1750		5000× 1105× 1750
Film Material	Shrink film: PVC, POFetc
Weight(kg)	1000	1000	1200	1200	1200	1200
Motor Power	Host motor1.1KW one set; film motor 0.75KW
Heating Power	450W, 2sets
Heating Power	400W, 4 sets
Main Power	Host machine is single phase 220V, 50HZ; shrink tunnel is three phases 380V, 50HZ
Total Power	Host machine is 4.5KW, shrink stove is 16.5 KW
