·Product category: Horizontal packing machine

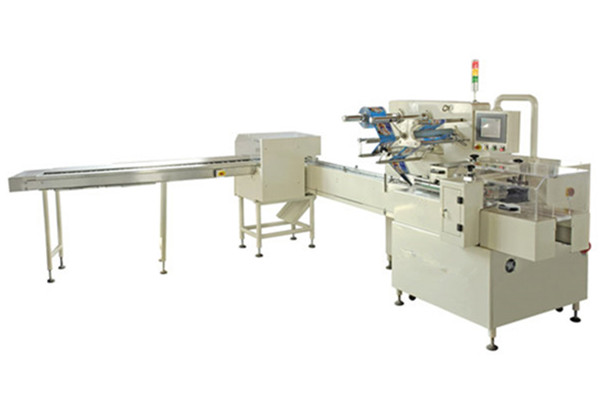

·Product name :MYD-G Type Biscuit Trayless Packing Machine

Special Recommendation:
Biscuit Packing Machine MYD-G-3 is a new type of biscuit packing machine . It is the top equipment for biscuit aggregate packaging without a holding tray. Our development makes China the 5th country owning this technology after Italy, Switzerland, Germany and England. The success developing of MYD-G eliminates many complications of importing this type of machine from abroad. It shortens the distance of packaging machine technology between China and other developed countries, and it also saves the huge manpower and material cost for our clients. Kraft, Danone and many other famous companies widely use this model in their sub-factories.

Features:
1. This biscuit packing machine uses imported Omron electrical components and three servo motors to complete the packing process, thus achieves the synchronization of supplying, pushing, filming, motioning, sealing and cutting speed. This machine also can carry out capacity adjustment.
2. Convenient when changing products; Achieves many purpose with one machine; Saves time and investment effectively.
3. Using cantilever structure with refined timing-belt configuration for easy maintenance. Greatly reduces running noise and increases the stability of the machine.
4. Adjustable large touch screen panel simplifies the operation. It can be programmed to memorize different products' technical parameters and adjusted easily to accomplish the task of packing different products.
5. The conveyer chain is designed with gentle clamping setting instead of the spring clamping to avoid the crushing of biscuit, so the finished product rate is effectively increased. At the same time, it leaves no biscuit crumbs to cause mildew.
6. The leaking design of the conveyer canal avoids biscuit crumbs stored in the canal gap, thus eliminates the mildewing problem and meets the safety standard of the food production industry.
7. Suction design can pump away excess air, make more compact package, and achieve the ideal packaging effect.
8. New double vertical sealing system and heating structure achieve excellent sealing at low temperature. The hot sealing wheels open automatically when the machine stops and effectively avoids the burning of wrapping film.

Main Technical Data:
Packing Speed: 60-100 packs per minute
Packing Product Size: Length: 90-450, Weight: 10-150, Height: 5-75mm
Net Wight: 1300kg
Dimension: 4300x1350x1960mm(not including feeding conveyor)
Power: Single phase 220V, 50Hz, 7kw
Film Material: Compound film of heat seal, OPP/PE, PT/PE, AL/PE, etc.

Technical Specification:

Packed bag:
